CCI Divergence Indicator for Amibroker (AFL)
bodisaudi
about 14 years ago
Amibroker (AFL)

Rating:
3 / 5 (Votes 8)
Tags:
oscillator, amibroker

This is a divergence indicator for CCI

Author: Dennis Skoblar

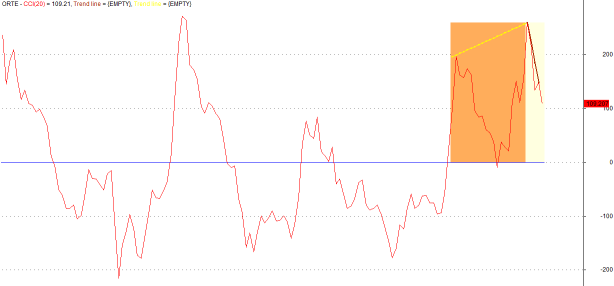

Screenshots

Similar Indicators / Formulas

Febo RSI ..real indicator
Submitted by abhinavsingh about 13 years ago
Trading Volume Statistic
Submitted by tuanstock1 over 10 years ago
Ergodic Oscillator
Submitted by dljtrader about 14 years ago
3 Days Track
Submitted by janet0211 over 14 years ago
Chande Momentum Oscillator
Submitted by klimpek almost 14 years ago
BoH Risk Aversion Indicator
Submitted by genkumag almost 13 years ago

Indicator / Formula

Indicator
Copy & Paste Friendly
_SECTION_BEGIN( "CCI Divergence Indicator" );
/*
  FileName: Mod - Osc-Price Divergence31
  October 25, 2005
  Version 1.0
  ====================================
  Use with MACD or Stochastics
  program detects and plots trendlines on oscillators
  generates price divergence data
  ====================================
  Program is built as an include module
  Program does not return anything. It plots the divergence area.
  The global variables below are available to controlling code
  ===============================================================
  - Modify divergence detection to account for continuation cases properly
  - Currently case #18 useed for continuation
*/

// Parameters needed to be defined before calling this module

Issue   = CCI( 20 );
Middle  = 0;

//Middle: MACD=0, Stoc=50, RSI=50

Div_Version = 32;
Pattern =  Diverge = "";

//Parameters
Trendlines     = Param( "Trendlines", 3, 0, 3, 1 );
TradeON        = Param( "TradeON", 1, 0, 1, 1 );
Diag_Trace     = Param( "Diag_Trace", 0, 0, 1, 1 );
Alerts         = Param( "Alerts", 0, 0, 1, 1 );

function ParameterSetup( Osc_Issue )
{
//Variables are defined here if they are assigned values in more than one location
    global Pattern, Diverge, PlotDiverge;
    global PlotOver1, PLotOver2, Line1, Line2;
    global Backtest, explore;
    global Sel_BarIndex, Sel_Osc_Issue;


    pattern        = "";
    diverge        = "";
    PlotDiverge    = 0;

    Plotover1 = Plotover2 = Line1 = Line2 = 0;

    Backtest       = Status( "action" ) == 5;
    Explore        = Status( "action" ) == 4;

    Sel_OscIssue        = IIf( TradeON == 1, LastValue( Osc_Issue ), SelectedValue( Osc_Issue ) );
    Sel_BarIndex        = IIf( TradeON == 1, LastValue( BarIndex() ), SelectedValue( BarIndex() ) );


// verify this segment
    if( Backtest == 1 )
    {
        TradeON = 0;
        Sel_OscIssue = Osc_Issue;
        Sel_BarIndex = BarIndex();

    }


} // end ParameterSetup





// ****************************************************************************************** //
//                                        Functions
//
//Determine Peaks  - Bearish Reversal
function DetectLastHigh( Osc_Issue )
{
    global LastHigh, LastHighBars, TurnDn_OK, Sel_TurnDn_OK;

    TurnDn_OK       = False;
    Sel_TurnDn_OK   = False;
    Def_Peak1       = 0;
    Def_Peak2       = 0;
    LastHigh        = 0;
    LastHighBars    = 0;

    Def_Peak1       = Osc_Issue < Ref( Osc_Issue, -1 ) AND Ref( Osc_Issue, -1 ) > Ref( Osc_Issue, -2 ) AND Osc_Issue < Ref( Osc_Issue, -2 );
    Def_Peak2       = Osc_Issue < Ref( Osc_Issue, -1 ) AND Ref( Osc_Issue, -1 ) < Ref( Osc_Issue, -2 ) AND Ref( Osc_Issue, -2 ) > Ref( Osc_Issue, -3 )
                      AND Osc_Issue < Ref( Osc_Issue, -3 );
    TurnDn_OK       = Def_Peak1 OR Def_Peak2;
    Sel_TurnDn_OK   = IIf( TradeON == 1, LastValue( TurnDn_OK ), SelectedValue( TurnDn_OK ) );


    HighBar1        = IIf( Def_Peak1 == 1, 1, 0 );
    HighBar2        = IIf( Def_Peak2 == 1, 1, 0 );
    HighBar         = IIf( HighBar1 == 1, 3, 4 );

    LastHigh        = HHV( Osc_Issue, HighBar );
    LastHighBars    = HHVBars( Osc_issue, HighBar );


    _TRACE( "Sel_TurnDn_OK "  + WriteVal( Sel_TurnDn_OK ) );

    if( Diag_Trace == 1 )
    {
        _TRACE( "Detect LastHigh - " + WriteVal( LastHigh, 1.2 ) + " Def Peak1 " + WriteVal( Def_Peak1, 1.0 )
                + " Def Peak2 " + WriteVal( Def_Peak2, 1.0 ) + "  TurnDn " + WriteVal( TurnDn_OK, 1.0 ) );
        _TRACE( "Detect LastHigh - Osc " + WriteVal( Osc_Issue, 1.2 ) +  "   Ref Osc -2 " + WriteVal( Ref( Osc_Issue, -2 ) )
                + "   Ref Osc -3 " + WriteVal( Ref( Osc_Issue, -3 ) ) );
    }

    return  Sel_TurnDn_OK;
} // end DetectLastHigh



function DetectBearishReversal( Osc_Issue, Middle )
{
    global SDiv_Code, BT_SDiv_Code, Bear_Diverge;

    SDiv_Code = BT_SDiv_Code = Bear_Diverge = 0;

    Sel_TurnDn_OK   = DetectLastHigh( Osc_Issue );
    _TRACE( "Bear Reversal - Enter Bear Diverge" );

    if( Sel_TurnDn_OK == 1 OR Backtest == 1 )
    {
//Find Current Peak
        FirstBar_CurrGroup   = BarsSince( Cross( Osc_Issue, Middle ) ) + 1;
        CurrPeak             = HHV( Osc_Issue, FirstBar_Currgroup );
        CurrPeakBars         = HHVBars( Osc_Issue, FirstBar_Currgroup ) + 0;
        Sel_CurrPeak         = IIf( TradeON == 1, LastValue( CurrPeak ), SelectedValue( CurrPeak ) );
        _TRACE( "Bear Reversal 02-0 - CPeak " + WriteVal( Sel_CurrPeak, 1.2 ) );

//Determine Prior Peak
//Distances computed relative to selected bar
        i = 0;
        _TRACE( "Bear Reversal 00 - start of loop  ------- " );

        do
        {
            i++;
            LastBar_PriorGroup       = Sel_BarIndex - ValueWhen( Cross( Middle, Osc_Issue ), BarIndex(), i );
            FirstBar_PriorGroup      = Sel_BarIndex - ValueWhen( Cross( Osc_Issue, Middle ), BarIndex(), i + 1 );

            Sel_LastBar_PG           = IIf( TradeON == 1, LastValue( LastBar_PriorGroup ), SelectedValue( LastBar_PriorGroup ) );
            Sel_FirstBar_PG          = IIf( TradeON == 1, LastValue( FirstBar_PriorGroup ), SelectedValue( FirstBar_PriorGroup ) );

//Lines below need the selected variable to function correctly
            Peak_PriorGroup          = Ref( HHV( Osc_Issue, Sel_FirstBar_PG - Sel_LastBar_PG + 1 ), -Sel_LastBar_PG + 1 );
            PeakBars_PriorGroup      = Ref( HHVBars( Osc_Issue, Sel_FirstBar_PG - Sel_LastBar_PG + 1 ), -Sel_LastBar_PG + 1 );

            Sel_LastBar_PriorGroup   = IIf( TradeON == 1, LastValue( LastBar_PriorGroup ), SelectedValue( LastBar_PriorGroup ) );
            Sel_PeakBars_PriorGroup  = IIf( TradeON == 1, LastValue( PeakBars_PriorGroup ), SelectedValue( PeakBars_PriorGroup ) );
            Sel_Peak_PriorGroup      = IIf( TradeON == 1, LastValue( Peak_PriorGroup ), SelectedValue( Peak_PriorGroup ) );

            Final_Bars               = Sel_PeakBars_PriorGroup + Sel_LastBar_PriorGroup;


// Diagnostic
            _TRACE( "Bear Reversal - loop 01  - i= " + WriteVal( i, 1.0 ) + " FB_PrGr " + WriteVal( Sel_FirstBar_PG, 1.0 ) + "  LB_PrGr " + WriteVal( Sel_LastBar_PG, 1.0 ) );
            _TRACE( "Bear Reversal - loop 02 - CPeak " + WriteVal( Sel_CurrPeak, 1.2 ) );
            _TRACE( "Bear Reversal - loop 03 - Pk_PG " + WriteVal( Sel_Peak_PriorGroup, 1.2 ) + " Pk_PGBars "  + WriteVal( Sel_PeakBars_PriorGroup, 1.0 ) + " F Bars " + WriteVal( Final_Bars ) );
            _TRACE( "Bear Reversal - loop 04 - While1= " + WriteVal( ( SelectedValue( Peak_PriorGroup ) - Middle ), 1.2 ) + "  Compare= " + WriteVal( ( ( SelectedValue( CurrPeak ) - Middle ) / 3 ), 1.2 ) );

        }
        while( ( ( Sel_Peak_PriorGroup - Middle ) < ( Sel_CurrPeak - Middle ) / 3 ) AND i < 10 );


        _TRACE( "Bear Reversal 05 - end of loop  ------- " );


        PriorPeak            = Peak_PriorGroup;
        PriorPeakBars        = Final_Bars;

        Sel_LastHigh       = IIf( TradeON == 1, LastValue( LastHigh ), SelectedValue( LastHigh ) );
        Sel_CurrPeak       = IIf( TradeON == 1, LastValue( CurrPeak ), SelectedValue( CurrPeak ) );
        Sel_PriorPeak      = IIf( TradeON == 1, LastValue( PriorPeak ), SelectedValue( PriorPeak ) );
        Sel_LastHighBars   = IIf( TradeON == 1, LastValue( LastHighBars ), SelectedValue( LastHighBars ) );
        Sel_CurrPeakBars   = IIf( TradeON == 1, LastValue( CurrPeakBars ), SelectedValue( CurrPeakBars ) );
        Sel_PriorPeakBars  = IIf( TradeON == 1, LastValue( PriorPeakBars ), SelectedValue( PriorPeakBars ) );

//Needed for Backtest Arrays
        SR1    = CurrPeak > PriorPeak AND LastHigh == CurrPeak;                         //Curr Peak Higher - Divergence not possible
        SR2    = CurrPeak < PriorPeak AND LastHigh == CurrPeak;                         //Curr Peak Lower
        SR3    = Osc_Issue > Middle AND CurrPeak > PriorPeak AND LastHigh < CurrPeak;   //Curr Peak Higher - Last High Lower
        SR4    = Osc_Issue > Middle AND CurrPeak < PriorPeak AND LastHigh < CurrPeak;   //Curr Peak Lower  - Best
        SR5    = LastHigh  < Middle   AND LastHigh < CurrPeak AND SR4 == 0 AND SR3 == 0; //Continuation signal with Osc_Issue < Middle


//Needed for display
        Sel_SR1    = IIf( TradeON == 1, LastValue( SR1 ), SelectedValue( SR1 ) );
        Sel_SR2    = IIf( TradeON == 1, LastValue( SR2 ), SelectedValue( SR2 ) );
        Sel_SR3    = IIf( TradeON == 1, LastValue( SR3 ), SelectedValue( SR3 ) );
        Sel_SR4    = IIf( TradeON == 1, LastValue( SR4 ), SelectedValue( SR4 ) );
        Sel_SR5    = IIf( TradeON == 1, LastValue( SR5 ), SelectedValue( SR5 ) );


//Determine Price Divergence
        if( Sel_SR1 == 1 )
        {
            Bear_Diverge = 0;
            SDiv_Code    = 11;
            Diverge      = "";
            Pattern      = "Higher High";
        }

        if( Sel_SR2 == 1 )
        {
            Curr_HighPrice     = HHV( High, 5 );
            Prior_PeakPrice    = Ref( HHV( High, 6 ), -( Sel_PriorPeakBars - 3 ) );
            Sel_CHighPrice     = IIf( TradeON == 1, LastValue( Curr_HighPrice ), SelectedValue( Curr_HighPrice ) );
            Sel_PPeakPrice     = IIf( TradeON == 1, LastValue( Prior_PeakPrice ), SelectedValue( Prior_PeakPrice ) );
            Sel_Bear_Diverge   = Sel_CHighPrice >= Sel_PPeakPrice;

            if( Sel_Bear_Diverge == 1 )
            {
                Bear_Diverge = 1;
                SDiv_Code    = 13;
                Diverge      = "Bearish";
                Pattern      = "Lower High";
            }
            else
            {
                Bear_Diverge = 0;
                SDiv_Code    = 12;
                Diverge      = "";
                Pattern      = "Lower High";
            }
        }


        if( Sel_SR3 == 1 )
        {
            _TRACE( "Bear Reversal - SR3 - True" );
            Curr_HighPrice   = HHV( High, 5 );
            Curr_PeakPrice   = Ref( HHV( High, 6 ), -( Sel_CurrPeakBars - 3 ) );
            Sel_CHighPrice   = IIf( TradeON == 1, LastValue( Curr_HighPrice ), SelectedValue( Curr_HighPrice ) );
            Sel_CPeakPrice   = IIf( TradeON == 1, LastValue( Curr_PeakPrice ), SelectedValue( Curr_PeakPrice ) );
            Sel_Bear_Diverge = Sel_CHighPrice >= Sel_CPeakPrice;


            if( Sel_Bear_Diverge == 1 )
            {
                Bear_Diverge = 1;
                SDiv_Code    = 15;
                Diverge      = "Bearish";
                Pattern      = "Higher High";
            }
            else
            {

                Bear_Diverge = 0;
                SDiv_Code    = 14;
                Diverge      = "";
                Pattern      = "Higher High";
            }
        }

        if( Sel_SR4 == 1 )
        {
            _TRACE( "Bear Reversal - SR4 - True" );
            Curr_HighPrice   = HHV( High, 5 );
            Curr_PeakPrice   = Ref( HHV( High, 6 ), -( Sel_CurrPeakBars - 3 ) );
            Sel_CHighPrice   = IIf( TradeON == 1, LastValue( Curr_HighPrice ), SelectedValue( Curr_HighPrice ) );
            Sel_CPeakPrice   = IIf( TradeON == 1, LastValue( Curr_PeakPrice ), SelectedValue( Curr_PeakPrice ) );
            Sel_Bear_Diverge = Sel_CHighPrice >= Sel_CPeakPrice;

            if( Sel_Bear_Diverge == 1 )
            {
                Bear_Diverge = 1;
                SDiv_Code    = 17;
                Diverge      = "Bearish";
                Pattern      = "Lower High";
            }
            else
            {
                Bear_Diverge = 0;
                SDiv_Code    = 16;
                Diverge      = "";
                Pattern      = "Lower High";
            }
        }  // end  Sel_Bear_Diverge




        if( Sel_SR5 == 1 )
        {
            Bear_Diverge = 0;
            SDiv_Code    = 18;
            Diverge      = "";
            Pattern      = "Continuation";
        }


        BT_SDiv_Code = IIf( SR1 == 1, 11,
                            IIf( SR2 == 1 AND Bear_Diverge == 0, 12, IIf( SR2 == 1 AND Bear_Diverge == 1, 13,
                                    IIf( SR3 == 1 AND Bear_Diverge == 0, 14, IIf( SR3 == 1 AND Bear_Diverge == 1, 15,
                                            IIf( SR4 == 1 AND Bear_Diverge == 0, 16, IIf( SR4 == 1 AND Bear_Diverge == 1, 17,
                                                    IIf( SR5 == 1 AND SR4 == 0 AND SR3 == 0, 18, 0 ) ) ) ) ) ) ) );

        if( Diag_trace )
        {
            _TRACE( "Bear Reversal #00 - Div_Code " + WriteVal( SDiv_Code, 1.0 ) + " --  SR1 " + WriteVal( Sel_SR1, 1.0 )
                    + " SR2 " + WriteVal( Sel_SR2, 1.0 ) + " SR3 " + WriteVal( Sel_SR3, 1.0 ) + " SR4 " + WriteVal( Sel_SR4, 1.0 ) );
            _TRACE( "Bear Reversal #00 - LastHigh " +  WriteVal( Sel_LastHigh, 1.2 ) + " CurrPeak " +  WriteVal( Sel_CurrPeak, 1.2 )
                    + " PriorPeak " +  WriteVal( Sel_PriorPeak, 1.2 ) );
        }

        if( Backtest == 0 )
        {
//Assign Values to coordinates
            y10 = Sel_CurrPeak;
            y11 = Sel_LastHigh;
            x10 = BarCount - 1 - Sel_CurrPeakBars - ( LastValue( BarIndex() ) - Sel_BarIndex );
            x11 = BarCount - 1 - Sel_LastHighBars - ( LastValue( BarIndex() ) - Sel_BarIndex );
            Line1  = LineArray( x10, y10, x11, y11, 0 );

            y20 = Sel_PriorPeak;
            y21 = Sel_CurrPeak;
            x20 = BarCount - 1 - SelectedValue( Final_Bars )  - ( LastValue( BarIndex() ) - Sel_BarIndex );
//x20=BarCount - 1 - Sel_PriorPeakBars  - (LastValue(BarIndex())- Sel_BarIndex);
            x21 = BarCount - 1 - Sel_CurrPeakBars   - ( LastValue( BarIndex() ) - Sel_BarIndex );
            Line2 = LineArray( x20, y20, x21, y21, 0 );

//Compute area to paint, based on MACD / Stochastic
            if( Middle == 50 )
            {
                Area_MaxValue = 100;
                PlotOver2 = IIf( BarIndex()  >= Sel_BarIndex  - ( x21 - x20 ) - ( x11 - x10 ) - 1 AND
                                 BarIndex() <= Sel_BarIndex  - ( x11 - x10 ), Area_MaxValue, 0 );
                PlotOver1 = IIf( BarIndex()  >= Sel_BarIndex  - ( x11 - x10 ) - 1 AND BarIndex() <= Sel_BarIndex, Area_MaxValue, 0 );


                if( SelectedValue( SDiv_Code ) == 15 )
                {
//Limit the blue bar for divergence to 2nd half of area for code 15
                    PlotDiverge = IIf( BarIndex() >= Sel_BarIndex - ( x11 - x10 ) - 1
                                       AND BarIndex() <= Sel_BarIndex AND Diverge == "Bearish", 10, 0 );
                }

                if( SelectedValue( SDiv_Code ) == 13 OR SelectedValue( SDiv_Code ) == 17 )
                {
                    PlotDiverge = IIf( BarIndex() >= Sel_BarIndex - ( x21 - x20 ) - ( x11 - x10 ) - 1
                                       AND BarIndex() <= Sel_BarIndex AND Diverge == "Bearish", 10, 0 );
                }

            }
            else
            {
                Area_MinValue = Max( y10, y20 );
                PlotOver2 = IIf( BarIndex()  >= Sel_BarIndex  - ( x21 - x20 ) - ( x11 - x10 ) - 1 AND
                                 BarIndex() <= Sel_BarIndex  - ( x11 - x10 ), Area_MinValue, 0 );
                PlotOver1 = IIf( BarIndex()  >= Sel_BarIndex  - ( x11 - x10 ) - 1 AND BarIndex() <= Sel_BarIndex, Area_MinValue, 0 );
            }

        } // end if backtest


        if( Diag_Trace == 1 )
        {
            _TRACE( "Bear Reversal #0 - Backtest " + WriteVal( Backtest, 1.0 ) );
            _TRACE( "Bear Reversal #1 - Sel_TurnDn_OK " + WriteVal( Sel_TurnDn_OK, 1.0 ) );
            _TRACE( "Bear Reversal #2 - CurrPeak " + WriteVal( Sel_CurrPeak, 1.2 ) + "  CPBars " + WriteVal( Sel_CurrPeakBars, 1.0 )
                    + "  DivCode  " + WriteVal( SDiv_Code, 1.0 ) );
            _TRACE( "Bear Reversal #3 - LB_PGroup " + WriteVal( Sel_LastBar_PG, 1.0 ) + "  FB_PGroup " + WriteVal( Sel_FirstBar_PG, 1.0 ) );
            _TRACE( "Bear Reversal #4 - Pk_PGroup " + WriteVal( PriorPeak, 1.2 ) + "  PB_PG " + WriteVal( PriorPeakBars, 1.0 ) );
            _TRACE( "Bear Reversal #5 - xy1: x10=" + WriteVal( x10, 1.0 ) + " y10=" + WriteVal( y10, 1.2 )
                    + "   x11=" + WriteVal( x11, 1.0 ) + " y11=" + WriteVal( y11, 1.2 ) );
            _TRACE( "Bear Reversal $6 - xy2: x20=" + WriteVal( x20, 1.0 ) + " y20=" + WriteVal( y20, 1.2 )
                    + "   x21=" + WriteVal( x21, 1.0 ) + " y21=" + WriteVal( y21, 1.2 ) );
            _TRACE( "Bear Reversal - end ================================================ " );

        } // end  Diag_Trace
    } // end  Sel_TurnDn_OK

//  Add code for troughs


    else
    {
        SDiv_Code    = 10;
    }

    return Sel_TurnDn_OK;
} //end DetectBearishReversal



//Determine Troughs
function DetectLastLow( Osc_Issue )
{
    global LastLow, LastLowBars, TurnUp_OK, Sel_TurnUp_OK;

    TurnUp_OK      = False;
    Sel_TurnUp_OK  = False;
    LastLow        = 0;
    LastLowBars    = 0;
    Def_Trough1    = 0;
    Def_Trough2    = 0;

    Def_Trough1    = Osc_Issue > Ref( Osc_Issue, -1 ) AND Ref( Osc_Issue, -1 ) < Ref( Osc_Issue, -2 ) AND Osc_Issue > Ref( Osc_Issue, -2 );
    Def_Trough2    = Osc_Issue > Ref( Osc_Issue, -1 ) AND Ref( Osc_Issue, -1 ) > Ref( Osc_Issue, -2 ) AND Ref( Osc_Issue, -2 ) < Ref( Osc_Issue, -3 )
                     AND Osc_Issue > Ref( Osc_Issue, -3 );

    TurnUp_OK      = Def_Trough1 OR Def_Trough2;
    Sel_TurnUp_OK  = IIf( TradeON == 1, LastValue( TurnUp_OK ), SelectedValue( TurnUp_OK ) );


    LowBar1        = IIf( Def_Trough1 == 1, 1, 0 );
    LowBar2        = IIf( Def_Trough2 == 1, 1, 0 );
    LowBar         = IIf( LowBar1 == 1, 3, 4 );

    LastLow        = LLV( Osc_Issue, LowBar );
    LastLowBars    = LLVBars( Osc_issue, LowBar );

    _TRACE( "Bull - LB1 " + WriteVal( LowBar1, 1.0 ) + "  LB2 " + WriteVal( LowBar2, 1.0 ) +  "  LB " + WriteVal( LowBar, 1.0 ) );



    if( Diag_Trace == 1 )
    {
        _TRACE( "DetectLastLow - LastLow " + WriteVal( LastLow, 1.2 ) + " Def Trough1 " + WriteVal( Def_Trough1, 1.0 )
                + " Def Trough2 " + WriteVal( Def_Trough2, 1.0 ) + "  TUp " + WriteVal( TurnUp_OK, 1.0 ) );
        _TRACE( "DetectLastLow - LastLow - Osc " + WriteVal( Osc_Issue, 1.2 ) +  "  Osc -1 " + WriteVal( Ref( Osc_Issue, -1 ), 1.2 )
                + "   Ref Osc -2 " + WriteVal( Ref( Osc_Issue, -2 ) ) + "   Ref Osc -3 " + WriteVal( Ref( Osc_Issue, -3 ) ) );
    }

    _TRACE( "Bear Code - end of Bear function " + WriteVal( SDiv_Code, 1.0 ) );
    return   Sel_TurnUp_OK;
}





function DetectBullishReversal( Osc_Issue, Middle )
{
    global  LDiv_Code, BT_LDiv_Code, BT_Code, Bull_Diverge;




    LDiv_Code = BT_LDiv_Code = 0;
    Bull_Diverge = 0;


    _TRACE( "Program Flow - Enter Detect Bullish Reversal - Bar Index " + WriteVal( BarIndex(), 1.0 ) +
            "  Last Bar  " + WriteVal( LastValue( BarIndex() ), 1.0 ) );

//Determine Trough for current period
    Sel_TurnUp_OK  = DetectLastLow( Osc_Issue );
    _TRACE( "Bull Code - Bull function Start " + Name() + "  TurnUp " + WriteVal( sel_TurnUp_OK, 1.0 ) + "  Code= " + WriteVal( LDiv_Code, 1.0 ) );


    if( Sel_TurnUp_OK == 1 OR Backtest == 1 )    // or 1==1 may be needed
    {
        FirstBar_CurrGroup    = BarsSince( Cross( Middle, Osc_Issue ) ) + 1;
        CurrTrough            = LLV( Osc_Issue, FirstBar_Currgroup );
        CurrTroughBars        = LLVBars( Osc_Issue, FirstBar_Currgroup ) + 0;
        Sel_CurrTrough        = IIf( TradeON == 1, LastValue( CurrTrough ), SelectedValue( CurrTrough ) );



//Distances computed relative to selected bar
        i = 0;
        _TRACE( "Bull Reversal 00 - start of loop  ------ " );

        do
        {
            i++;
            LastBar_PriorGroup         = Sel_BarIndex - ValueWhen( Cross( Osc_Issue, Middle ), BarIndex(), i );
            FirstBar_PriorGroup        = Sel_BarIndex - ValueWhen( Cross( Middle, Osc_Issue ), BarIndex(), i + 1 );

            Sel_LastBar_PG             = IIf( TradeON == 1, LastValue( LastBar_PriorGroup ), SelectedValue( LastBar_PriorGroup ) );
            Sel_FirstBar_PG            = IIf( TradeON == 1, LastValue( FirstBar_PriorGroup ), SelectedValue( FirstBar_PriorGroup ) );

//Find Trough using scalars - This may interfere with Backtest operation, but needed
            Trough_PriorGroup          = Ref( LLV( Osc_Issue, Sel_FirstBar_PG - Sel_LastBar_PG + 1 ), -Sel_LastBar_PG + 1 );
            TroughBars_PriorGroup      = Ref( LLVBars( Osc_Issue, Sel_FirstBar_PG - Sel_LastBar_PG + 1 ), -Sel_LastBar_PG + 1 );

            Sel_LastBar_PriorGroup     = IIf( TradeON == 1, LastValue( TroughBars_PriorGroup ), SelectedValue( TroughBars_PriorGroup ) );
            Sel_TroughBars_PriorGroup  = IIf( TradeON == 1, LastValue( LastBar_PriorGroup ), SelectedValue( LastBar_PriorGroup ) );
            Sel_Trough_PriorGroup      = IIf( TradeON == 1, LastValue( Trough_PriorGroup ), SelectedValue( Trough_PriorGroup ) );

            Final_Bars                 = Sel_TroughBars_PriorGroup + Sel_LastBar_PriorGroup - 1;

            if( Diag_Trace )
            {
                _TRACE( "Bull Reversal - loop 01 - i= " + WriteVal( i, 1.0 ) + " FB_PrGr " + WriteVal( FirstBar_PriorGroup, 1.0 )
                        + " / " + WriteVal( Sel_FirstBar_PG, 1.0 ) + "  LB_PrGr " + WriteVal( LastBar_PriorGroup, 1.0 )
                        + " / " + WriteVal( Sel_LastBar_PG, 1.0 ) );
                _TRACE( "Bull Reversal - loop 02 - Sel_FB_PrGr  " + WriteVal( Sel_FirstBar_PG, 1.0 ) + "   Sel_LB_PrGr " + WriteVal( Sel_LastBar_PG, 1.0 ) );
                _TRACE( "Bull Reversal - loop 03 - Tr_PG " + WriteVal( Trough_PriorGroup, 1.2 ) + " Tr_PGBars "  + WriteVal( TroughBars_PriorGroup, 1.0 ) + " F Bars " + WriteVal( Final_Bars, 1.0 ) );
                _TRACE( "Bull Reversal - loop 04 - While1= " + WriteVal( ( Middle - SelectedValue( Trough_PriorGroup ) ), 1.2 ) + "  Compare= " + WriteVal( ( ( Middle - SelectedValue( CurrTrough ) ) / 3 ), 1.2 ) );
            }

        }
        while( ( ( Middle - Sel_Trough_PriorGroup ) < ( Middle - Sel_CurrTrough ) / 3 ) AND i < 10 );


        PriorTrough          = Trough_PriorGroup;
        PriorTroughBars      = Final_Bars;


//Put Divergence codes into Array
//Compute results for display
        Sel_LastLow          = IIf( TradeON == 1, LastValue( LastLow ), SelectedValue( LastLow ) );
        Sel_CurrTrough       = IIf( TradeON == 1, LastValue( CurrTrough ), SelectedValue( CurrTrough ) );
        Sel_PriorTrough      = IIf( TradeON == 1, LastValue( PriorTrough ), SelectedValue( PriorTrough ) );
        Sel_LastLowBars      = IIf( TradeON == 1, LastValue( LastLowBars ), SelectedValue( LastLowBars ) );
        Sel_CurrTroughBars   = IIf( TradeON == 1, LastValue( CurrTroughBars ), SelectedValue( CurrTroughBars ) );
        Sel_PriorTroughBars  = IIf( TradeON == 1, LastValue( PriorTroughBars ), SelectedValue( PriorTroughBars ) );



//Needed for Backtest Arrays
        LR1    = CurrTrough < PriorTrough AND LastLow == CurrTrough;
        LR2    = CurrTrough > PriorTrough AND LastLow == CurrTrough;
        LR3    = Osc_Issue  < Middle AND CurrTrough < PriorTrough AND LastLow > CurrTrough;
        LR4    = Osc_Issue  < Middle AND CurrTrough > PriorTrough AND LastLow > CurrTrough;
        LR5    = LastLow    > Middle AND LastLow > CurrTrough AND LR3 == 0 AND LR4 == 0;



//Needed for display
        Sel_LR1    = IIf( TradeON == 1, LastValue( LR1 ), SelectedValue( LR1 ) );
        Sel_LR2    = IIf( TradeON == 1, LastValue( LR2 ), SelectedValue( LR2 ) );
        Sel_LR3    = IIf( TradeON == 1, LastValue( LR3 ), SelectedValue( LR3 ) );
        Sel_LR4    = IIf( TradeON == 1, LastValue( LR4 ), SelectedValue( LR4 ) );
        Sel_LR5    = IIf( TradeON == 1, LastValue( LR5 ), SelectedValue( LR5 ) );


//Determine Price Divergence
        if( Sel_LR1 == 1 )
        {
            Bull_Diverge = 0;
            LDiv_Code    = 11;
            Diverge      = "";
            Pattern      = "Lower Low";
        }

        if( Sel_LR2 == 1 )
        {
            Curr_LowPrice     = LLV( Low, 5 );
            Prior_LowPrice    = Ref( LLV( Low, 6 ), -( Sel_PriorTroughBars - 3 ) );
            Sel_CLowPrice     = IIf( TradeON == 1, LastValue( Curr_LowPrice ), SelectedValue( Curr_LowPrice ) );
            Sel_PLowPrice     = IIf( TradeON == 1, LastValue( Prior_LowPrice ), SelectedValue( Prior_LowPrice ) );
            Sel_Bull_Diverge  = Sel_CLowPrice <= Sel_PLowPrice;

            if( Sel_Bull_Diverge == 1 )
            {
                Bull_Diverge = 1;
                LDiv_Code    = 13;
                Diverge      = "Bullish";
                Pattern      = "Higher Low";
            }
            else
            {
                Bull_Diverge = 0;
                LDiv_Code    = 12;
                Diverge      = "";
                Pattern      = "Higher Low";
            }
        }

        if( Sel_LR3 == 1 )
        {
            Curr_LowPrice     = LLV( Low, 5 );
            CT_LowPrice       = Ref( LLV( Low, 6 ), -( Sel_CurrTroughBars - 3 ) );
            Sel_CLowPrice     = IIf( TradeON == 1, LastValue( Curr_LowPrice ), SelectedValue( Curr_LowPrice ) );
            Sel_CTroughPrice  = IIf( TradeON == 1, LastValue( CT_LowPrice ), SelectedValue( CT_LowPrice ) );
            Sel_Bull_Diverge  = Sel_CLowPrice <= Sel_CTroughPrice;

            if( Sel_Bull_Diverge == 1 )
            {
                Bull_Diverge = 1;
                LDiv_Code    = 15;
                Diverge      = "Bullish";
                Pattern      = "Lower Low";
            }
            else
            {
                Bull_Diverge = 0;
                LDiv_Code    = 14;
                Diverge      = "";
            }
        }


        if( Sel_LR4 == 1 )
        {
            Curr_LowPrice     = LLV( Low, 5 );
            CT_LowPrice       = Ref( LLV( Low, 6 ), -( Sel_CurrTroughBars - 3 ) );
            Sel_CLowPrice     = IIf( TradeON == 1, LastValue( Curr_LowPrice ), SelectedValue( Curr_LowPrice ) );
            Sel_CTroughPrice  = IIf( TradeON == 1, LastValue( CT_LowPrice ), SelectedValue( CT_LowPrice ) );
            Sel_Bull_Diverge  = Sel_CLowPrice <= Sel_CTroughPrice;

            if( Sel_Bull_Diverge == 1 )
            {
                Bull_Diverge = 1;
                LDiv_Code    = 17;
                Diverge      = "Bullish";
                Pattern      = "Higher Low";
            }
            else
            {
                Bull_Diverge = 0;
                LDiv_Code    = 16;
                Diverge      = "";
                Pattern      = "Higher Low";
            }
        }


        if( Sel_LR5 == 1 )
        {
            Bull_Diverge = 0;
            LDiv_Code    = 18;
            Diverge      = "";
        }

        BT_LDiv_Code = IIf( LR1 == 1, 11,
                            IIf( LR2 == 1 AND Bull_Diverge == 0, 12, IIf( LR2 == 1 AND Bull_Diverge == 1, 13,
                                    IIf( LR3 == 1 AND Bull_Diverge == 0, 14, IIf( LR3 == 1 AND Bull_Diverge == 1, 15,
                                            IIf( LR4 == 1 AND Bull_Diverge == 0, 16, IIf( LR4 == 1 AND Bull_Diverge == 1, 17,
                                                    IIf( LR5 == 1 AND LR4 == 0 AND LR3 == 0, 18, 0 ) ) ) ) ) ) ) );


        if( Diag_trace )
        {
            _TRACE( "Bull Reversal #00A - BT_Div_Code " + WriteVal( BT_LDiv_Code, 1.0 ) );

            _TRACE( "Bull Reversal #00B - Div_Code " + WriteVal( LDiv_Code, 1.0 ) + " --  LR1 " + WriteVal( LR1, 1.0 )
                    + " LR2 " + WriteVal( LR2, 1.0 ) + " LR3 " + WriteVal( LR3, 1.0 ) + " LR4 " + WriteVal( LR4, 1.0 ) );
            _TRACE( "Bull Reversal #00C - LastLow " +  WriteVal( Sel_LastLow, 1.2 ) + " CurrTrough " +  WriteVal( Sel_CurrTrough, 1.2 )
                    + " PriorTrough " +  WriteVal( Sel_PriorTrough, 1.2 ) );
        }

        if( Backtest == 0 )
        {
//Assign Values to coordinates
            y10 = Sel_CurrTrough;
            y11 = Sel_LastLow;
            x10 = BarCount - 1 - Sel_CurrTroughBars - ( LastValue( BarIndex() ) - Sel_BarIndex );
            x11 = BarCount - 1 - Sel_LastLowBars    - ( LastValue( BarIndex() ) - Sel_BarIndex );
            Line1  = LineArray( x10, y10, x11, y11, 0 );

            y20 = Sel_PriorTrough;
            y21 = Sel_CurrTrough;
            x20 = BarCount - 1 - SelectedValue( Final_Bars ) - ( LastValue( BarIndex() ) - Sel_BarIndex );
            x21 = BarCount - 1 - Sel_CurrTroughBars        - ( LastValue( BarIndex() ) - Sel_BarIndex );
            Line2 = LineArray( x20, y20, x21, y21, 0 );
//


//Find min value of oscillator in area of interest
            Area_MinValue = 0;
            Area_MaxValue = 0;

            if( Middle == 50 )
            {
                Area_MaxValue = 100;
                PlotOver2   = IIf( BarIndex() >= Sel_BarIndex  - ( x21 - x20 ) - ( x11 - x10 ) - 1 AND
                                   BarIndex() <= Sel_BarIndex - ( x11 - x10 ), Area_MaxValue, 0 );
                PlotOver1   = IIf( BarIndex() >= Sel_BarIndex - ( x11 - x10 ) - 1 AND
                                   BarIndex() <= Sel_BarIndex, Area_MaxValue, 0 );

                if( SelectedValue( LDiv_Code ) == 15 )
                {
//Limit the blue bar for divergence to 2nd half of area for code 15
                    PlotDiverge = IIf( BarIndex() >= Sel_BarIndex - ( x11 - x10 ) - 1
                                       AND BarIndex() <= Sel_BarIndex AND Diverge == "Bullish", 10, 0 );
                }

                if( SelectedValue( LDiv_Code ) == 13 OR SelectedValue( LDiv_Code ) == 17 )
                {
                    PlotDiverge = IIf( BarIndex() >= Sel_BarIndex - ( x21 - x20 ) - ( x11 - x10 ) - 1
                                       AND BarIndex() <= Sel_BarIndex AND Diverge == "Bullish", 10, 0 );
                }


            }
            else
            {
                Area_MinValue = Min( y10, y20 );
                PlotOver2 = IIf( BarIndex() >= Sel_BarIndex  - ( x21 - x20 ) - ( x11 - x10 ) - 1 AND
                                 BarIndex() <= Sel_BarIndex - ( x11 - x10 ) - 2, Area_MinValue, 0 );
                PlotOver1 = IIf( BarIndex() >= Sel_BarIndex - ( x11 - x10 ) - 1 AND
                                 BarIndex() <= Sel_BarIndex, Area_MinValue, 0 );
            }

            _TRACE( "Plot - Bull  #00C - PlotDiverge " + WriteVal( PlotDiverge, 1.0 ) );

        } // end if backtest


        if( Diag_Trace == 1 )
        {
            _TRACE( "Bull Reversal #0 - Backtest " + WriteVal( Backtest, 1.0 ) );
            _TRACE( "Bull Reversal #1 - DivCode: " + WriteVal( LDiv_Code, 1.0 ) + " LB DivCode " + WriteVal( LDiv_Code[BarCount - 1], 1.0 ) );
            _TRACE( "Bull Reversal #2  - Last Low  " + WriteVal( LastLow, 1.2 ) );
            _TRACE( "Bull Reversal #3 - Area_MinValue " + WriteVal( Area_MinValue, 1.2 ) );
            _TRACE( "Bull Reversal #4 - CurrTrough " + WriteVal( Sel_CurrTrough, 1.2 ) + "  LastLow " + WriteVal( Sel_LastLow, 1.2 ) );
            _TRACE( "Bull Reversal #5 - FBar_CT " + WriteVal( SelectedValue( FirstBar_CurrGroup ), 1.0 ) + " BCurrTrough " + WriteVal( CurrTroughBars, 1.0 ) );
            _TRACE( "Bull Reversal #6 - CurrTrough " + WriteVal( CurrTrough, 1.2 ) + "  CTBars " + WriteVal( CurrTroughBars, 1.0 ) );
            _TRACE( "Bull Reversal #7 - LB_PrGroup " + WriteVal( LastBar_PriorGroup, 1.0 ) + "  FB_PrGroup " + WriteVal( FirstBar_PriorGroup, 1.0 ) );
            _TRACE( "Bull Reversal #8 - Tr_PrGroup " + WriteVal( Trough_PriorGroup, 1.2 ) + "  TrB_PrG " + WriteVal( TroughBars_PriorGroup, 1.0 ) );
            _TRACE( "Bull Reversal #9 - PrTrough " + WriteVal( PriorTrough, 1.2 ) + "  PrTrBars " + WriteVal( PriorTroughBars, 1.0 ) );
            _TRACE( "Bull Reversal #10 - xy1: x10=" + WriteVal( x10, 1.0 ) + " y10=" + WriteVal( y10, 1.2 )
                    + "   x11=" + WriteVal( x11, 1.0 ) + " y11=" + WriteVal( y11, 1.2 ) );
            _TRACE( "Bull Reversal #11 - xy2: x20=" + WriteVal( x20, 1.0 ) + " y20=" + WriteVal( y20, 1.2 )
                    + "   x21=" + WriteVal( x21, 1.0 ) + " y21=" + WriteVal( y21, 1.2 ) );

            _TRACE( "Bull Reversal - end =========================================== " );

        } // end Diag_Trace
    } // end Sel_TurnUp_OK
    else
    {
        LDiv_Code    = 10;
    }

    return Sel_TurnUp_OK;
} // end function BullishReversal








function PlotTrendLines( PlotOver1, PlotOver2, BullBear )
{
//Plot Trendlines
    _TRACE( "Plot - Enter Module " );
    Line1Color   = IIf( BullBear == "Bullish", colorBlack, colorBrown );
    Line2Color   = IIf( BullBear == "Bullish", colorGreen, colorYellow );
    Area1Color   = IIf( BullBear == "Bullish", colorPaleGreen, colorLightYellow );
    Area2Color   = IIf( BullBear == "Bullish", colorAqua, colorLightOrange );


    if( Trendlines == 1 OR Trendlines == 3 )
    {
        Plot( Line1, "Trend line", Line1Color, styleDots | styleThick | styleNoLabel );
        Plot( Line2, "Trend line", Line2Color, styleDots | styleThick | styleNoLabel );
    }


    if( Trendlines >= 2 )
    {
        _TRACE( "Plot - PlotDiverge " + WriteVal( PlotDiverge, 1.0 ) );
        Plot( PlotDiverge, "", colorBlue, styleArea | styleNoLabel );
        Plot( Plotover1, "", Area1color, styleArea | styleNoLabel );
        Plot( Plotover2, "", Area2color, styleArea | styleNoLabel );
    } // end Trendlines

    _TRACE( "Plot - End Module " );
} // end PlotTrendlines


// ******************************************************************************************* //
//"Div - EndTime " + Now(2);

// START OF CONTROL SECTION
// Complete loop takes 7ms when no divergence is detected and 17 ms with divergence

function DivergeControl( Osc_Issue, Middle )
{
    Backtest = Status( "action" ) == 5;

//Declare Variable and set up parameters
    ParameterSetup( Osc_Issue );

//Process Bearish Reversal and Continuation
    RunStatus = Status( "action" );

    StartTime = Now( 4 );
    _TRACE( "Timer Start - " + WriteVal( StartTime, 1.0 ) );

    Sel_TurnDn_OK  = DetectBearishReversal( Osc_Issue, Middle );

    _TRACE( "Timer End - " + WriteVal( Now( 4 ), 1.0 ) + " Diff " + WriteVal( ( Now( 4 ) - StartTime ), 1.4 ) );
//_TRACE("Control Section - DivCode  " + WriteVal(SDiv_Code,1.0) + "  LB DivCode " +  WriteVal(SDiv_Code[BarCount-1],1.0));


    Sel_TurnUp_OK = DetectBullishReversal( Osc_Issue, Middle );

    if( Backtest == 0 AND( Sel_TurnDn_OK == 1 OR Sel_TurnUp_OK == 1 ) )
    {
        Bull_Bear = WriteIf( Sel_TurnDn_OK == 1, "Bearish", WriteIf( Sel_TurnUp_OK == 1, "Bullish", "" ) );
        PlotTrendlines( PlotOver1, PlotOver2, Bull_Bear );
    }




    _TRACE( "Control Section - end ==============================================================" );
    _TRACE( "Control Section - end ==============================================================" );


    if( Status( "action" ) == 1 AND Alerts == 1 )
    {
        _TRACE( "Alert section - Bull Code " + WriteVal( LDiv_Code, 1.0 ) + "  Bear Code " + WriteVal( SDiv_Code, 1.0 ) );
        AlertIf( LDiv_Code == 11, "Sound D:\\Amibroker\\Wav Files\\Lower Low.wav", "", 6, 12, 0 );
        AlertIf( ( LDiv_Code == 12 OR LDiv_Code == 13 OR LDiv_Code == 14 ) AND Bull_Diverge == 0, "Sound D:\\Amibroker\\Wav Files\\Higher Low.wav", "", 5, 12, 0 );
        AlertIf( ( LDiv_Code == 12 OR LDiv_Code == 13 OR LDiv_Code == 14 ) AND Bull_Diverge == 1, "Sound D:\\Amibroker\\Wav Files\\Bull Diverge.wav", "", 6, 12, 0 );
        AlertIf( SDiv_Code == 11, "Sound D:\\Amibroker\\Wav Files\\Higher High.wav", "", 6, 12, 0 );
        AlertIf( ( SDiv_Code == 12 OR SDiv_Code == 13 OR SDiv_Code == 14 ) AND Bear_Diverge == 0, "Sound D:\\Amibroker\\Wav Files\\Lower High.wav", "", 7, 12, 0 );
        AlertIf( ( SDiv_Code == 12 OR SDiv_Code == 13 OR SDiv_Code == 14 ) AND Bear_Diverge == 1, "Sound D:\\Amibroker\\Wav Files\\Bear Diverge.wav", "", 8, 12, 0 );
    }

    return Pattern + " - " + Diverge;
}  // end DivergeControl


Plot( CCI( 20 ), "CCI(20)", colorRed, styleLine );
divergeControl( Issue, Middle );
_SECTION_END();

2 comments

1. Pascal SAMSON
about 14 years ago

Thanks a lot. Divergence is one of the few weappons that traders have to predict the future.

Report as Spam
2. analystbank
over 12 years ago

Seems to be a nice afl but on screen, just CCI appears, how to activate other things, as mentioned (in commentary) in the AFL to see divergence, with trendline on indicator

Report as Spam

Leave Comment

Please login here to leave a comment.

Back

We try to maintain hiqhest possible level of service - most formulas, oscillators, indicators and systems are submitted by anonymous users. Therefore www.WiseStockTrader.com does not take any responsibility for it's quality. If you use any of this information, use it at your own risk. You are responsible for your own trading decisions. Be sure to verify that any information you see on these pages is correct, and is applicable to your particular trade. In no case will www.WiseStockTrader.com be responsible for your trading gains or losses.

News Contact Us Terms and Conditions Privacy Policy
