Volatility Stop Indicator (VSTOP) for Amibroker (AFL)

kaiji over 16 years ago Amibroker (AFL)

  • Rating:
    5 / 5 (Votes 1)
  • Tags:
    amibroker, stop loss, volatility

Below code how to call the volatility stop procedure. The procedure returns trailing stop loss. This array can be used to define entries or exits.

For an example on how to use this formula click here

Thanks to E.M.Pottasch for this formula and its improvements

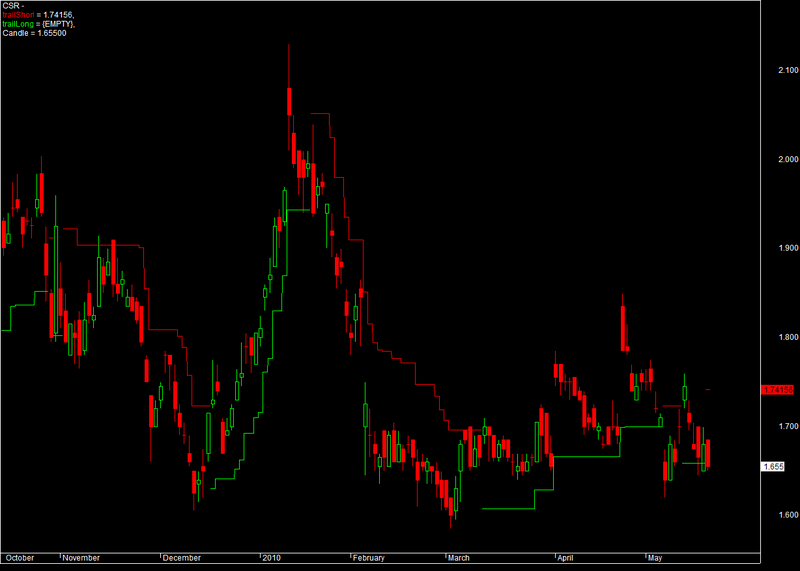

Screenshots

Indicator / Formula

Copy & Paste Friendly
// E.M.Pottasch, Jul 2010
// from Metastock formula, link: http://stocata.org/metastock/stop_trail_atr.html
// added separate parameters for upward and downward market environment

function vstop_func(trBull,trBear)
{
	trailArray[ 0 ] = C[ 0 ]; // initialize
	for( i = 1; i < BarCount; i++ )
	{
		prev = trailArray[ i - 1 ];

		if (C[ i ] > prev AND C[ i - 1 ] > prev)
		{
			trailArray[ i ] = Max(prev,C[ i ] - trBull[ i ]);
		}
		else if (C[ i ] < prev AND C[ i - 1 ] < prev)
		{
			trailArray[ i ] = Min(prev,C[ i ] + trBear[ i ]);
		}
		else if (C[ i ] > prev)
		{
			trailArray[ i ] = C[ i ] - trBull[ i ];
		}
		else
		{
			trailArray[ i ] = C[ i ] + trBear[ i ];
		}
	}
	return trailArray;
}

per = Param("per",20, 1, 150, 1);
multBull = Param("multBull",2, 1, 4, 0.05);
multBear = Param("multBear",2, 1, 4, 0.05);

trBull = multBull * ATR(per);
trBear = multBear * ATR(per);

trailArray = vstop_func(trBull,trBear);

SetChartBkColor( ParamColor("ColorBG", ColorRGB( 0, 0, 0 ) ) );
GraphXSpace = 5;
SetChartOptions(0, chartShowDates);
Plot(IIf(trailArray > C,trailArray,Null),"\ntrailShort",ParamColor("ColorTrailShort",ColorRGB(255,0,0)),styleStaircase);
Plot(IIf(trailArray < C,trailArray,Null),"\ntrailLong",ParamColor("ColorTrailLong",ColorRGB(0,255,0)),styleStaircase);
Plot( C, "\nCandle",colorWhite, styleCandle );

7 comments

3. morgen
about 14 years ago

The best formula for both Buystop and Sellstop!
Thank You E.M.Pottasch

about 14 years ago

Dear Sir,

I admire your tech capabilities & knowledge in this field of trading.

I read your comments that you are developing/working on new system/indicator.

If it is done, kinldy update and paste in the wisestocktrader.com

Once again thanks & regards,

Viswanath MK

almost 9 years ago

Any location to find the vstop_proc.afl file ?? Needed in the Pastie #7 = Volatility Stop Usage Example.afl
