Future Plotting of Time and Price for Amibroker (AFL)

sudhir12192 over 16 years ago Amibroker (AFL)

  • Rating:
    2 / 5 (Votes 3)
  • Tags:
    amibroker

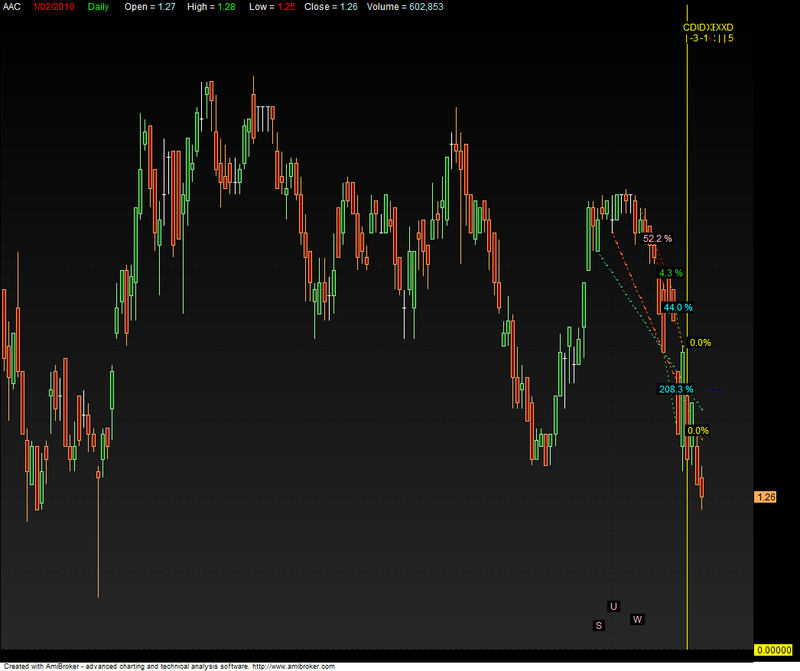

This formula plots time and price in the blank space on the right of the chart. To use this you must make sure that Preferences > Charting Blank bars in right margin is set to a value of greater than 0. An example is provided at the bottom of the chart for plotting lines with starting arrays that are beyond the current price bars. Pivot Letters have been assigned to assist in creating explorations for price patterns. Thanks to Tomasz and Marcin for providing assistance with getting me pointed in the right direction with future plotting.

Screenshots

Indicator / Formula

Copy & Paste Friendly
_SECTION_BEGIN("Chart Settings");
	SetChartOptions(0,chartShowArrows|chartShowDates);
	SetChartBkColor(ParamColor("Outer Panel",1));
	SetChartBkGradientFill(ParamColor("Upper Chart",1),ParamColor("Lower
Chart",23));
	GraphXSpace=Param("GraphXSpace",10,0,100,1);
	dec = (Param("Decimals",2,0,7,1)/10)+1;
	bi = BarIndex();
	Lbi = LastValue(BarIndex());
	sbi = SelectedValue(bi);
	x1= BarCount-1;
SetBarFillColor (IIf(C>O,19,IIf(C<O,24,42)));
Plot(C,"",IIf(C>O,51,IIf(C<O,33,55)),64);

//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
_SECTION_BEGIN("SV X Pivots");
	pct = Param( "Pivot %",0.18,0.10,60,0.01);
	plt = ParamToggle("Plot Zig ","Off|On",0);
	ppa = ParamToggle("Plot Pattern Lines","Off|On",1);
	plx = ParamToggle("Plot Time Lines","Off|On",1);
	Vsh= Param("Time Line V Shift",0.25,0,10,0.01);
	ptx = ParamToggle("Plot Text","Off|On",1);
	HiLb= Param("Hi Lookback",1,1,x1,1);
	LoLb= Param("Lo Lookback",1,0,x1,1);
//==============================
	pk=PeakBars(H,pct)==0; tr=TroughBars(L,pct)==0;
	zHi=Zig(H,pct); zLo=Zig(L,pct); HLAvg=(zHi+zLo)/2;
	zp=IIf(pk,zHi,IIf(tr,zLo,IIf(HLAvg>Ref(HLAvg,-1),H,L)));
	za=Zig(zp,pct);
	pR=Ref(za,-1)<za AND za>Ref(za,1);//pk
	pS=Ref(za,-1)>za AND za<Ref(za,1);//tr
//==============================
if(plt==1)Plot(za,"ZIG",42,32|4096);
//==============================
//Support
	xs0 = SelectedValue(ValueWhen(PS,bi,LoLb));
	xs1 = SelectedValue(ValueWhen(pS,bi,LoLb+1));
	xs2 = SelectedValue(ValueWhen(pS,bi,LoLb+2));
	xs3 = SelectedValue(ValueWhen(pS,bi,LoLb+3));
	xs4 = SelectedValue(ValueWhen(pS,bi,LoLb+4));
	ys0 = SelectedValue(ValueWhen(pS,L,LoLb));
	ys1 = SelectedValue(ValueWhen(pS,L,LoLb+1));
	ys2 = SelectedValue(ValueWhen(pS,L,LoLb+2));
	ys3 = SelectedValue(ValueWhen(pS,L,LoLb+3));
	ys4 = SelectedValue(ValueWhen(pS,L,LoLb+4));
//Resistance
	xr0 = SelectedValue(ValueWhen(pR,bi,HiLb));
	xr1 = SelectedValue(ValueWhen(pR,bi,HiLb+1));
	xr2 = SelectedValue(ValueWhen(pR,bi,HiLb+2));
	xr3 = SelectedValue(ValueWhen(pR,bi,HiLb+3));
	xr4 = SelectedValue(ValueWhen(pR,bi,HiLb+4));
	yr0 = SelectedValue(ValueWhen(pR,H,HiLb));
	yr1 = SelectedValue(ValueWhen(pR,H,HiLb+1));
	yr2 = SelectedValue(ValueWhen(pR,H,HiLb+2));
	yr3 = SelectedValue(ValueWhen(pR,H,HiLb+3));
	yr4 = SelectedValue(ValueWhen(pR,H,HiLb+4));
	Sup = xs0>xr0;
	Res = xr0>xs0;
	xsh = 50;
	xsbi = IIf(Res, xr0-xsh, xs0-xsh);//xstart

	za=Zig(zp,0.01);
	pR=Ref(za,-1)<za AND za>Ref(za,1);//pk
	pS=Ref(za,-1)>za AND za<Ref(za,1);//tr
	eLy = SelectedValue(ValueWhen(pS,L,0));
	eHy = SelectedValue(ValueWhen(pR,H,0));
	d1 = IIf(sup,ely,ehy);
	c1 = IIf(sup,ehy,ely);
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
_SECTION_BEGIN("Patterns");
//Assign Letter to Pivots
if(Res==1)  {
	col= 40; colp= 32; va1= 0.30; va2= -0.30;
	Sx = xs4;  Sy = ys4;  Tx = xr4;  Ty = yr4;
	Ux = xs3;  Uy = ys3;  Vx = xr3;  Vy = yr3;
	Wx = xs2;  Wy = ys2;  Xx = xr2;  Xy = yr2;
	Ax = xs1;  Ay = ys1;  Bx = xr1;  By = yr1;
	Cx = xs0;  Cy = ys0;  Dx = xr0;  Dy = yr0;
}
if(Sup==1)  {
	col= 51; colp= 43; va1= -0.30; va2= 0.30;
	Sx = xr4;  Sy = yr4;  Tx = xs4;  Ty = ys4;
	Ux = xr3;  Uy = yr3;  Vx = xs3;  Vy = ys3;
	Wx = xr2;  Wy = yr2;  Xx = xs2;  Xy = ys2;
	Ax = xr1;  Ay = yr1;  Bx = xs1;  By = ys1;
	Cx = xr0;  Cy = yr0;  Dx = xs0;  Dy = ys0;
}
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
//Calculate Hi Lo Retracements
	WX=(abs(xy-wy)/abs(wy-vy))*100;
	XA=abs(Xy-Ay)/abs(Xy-Wy)*100;
	AB=abs(By-Ay)/abs(Xy-Ay)*100;
	BC=abs(By-Cy)/abs(By-Ay)*100;
	CD=abs(Dy-Cy)/abs(By-Cy)*100;
	CE=(abs(Cy-c1)/abs(Cy-By))*100;
	DE=(abs(Dy-d1)/abs(Cy-Dy))*100;

//Calculate Hi-Hi Lo-Lo Retracements
	XBi= abs(Xy-By)/(abs(Xy-Ay))*100;
	XBe= abs(By-Ay)/(abs(Xy-Ay))*100;
	XB = IIf(By>=Ay,XBe,XBi);
	XD=abs(Dy-Ay)/abs(Xy-Ay)*100;
	ACi=abs(Cy-Ay)/abs(By-Ay)*100;
	ACe=abs(By-Cy)/abs(By-Ay)*100;
	AC = IIf(Cy>=Ay,ACi,ACe);
	BDi=abs(Dy-By)/abs(By-Cy)*100;
	BDe=abs(Dy-Cy)/abs(By-Cy)*100;
	BD = IIf(Dy>=By,BDe,BDi);
//Plot Labels and Retracements
if(ptx==1)  {
	PlotText(" S ",sx,sy + va2, col,1);  PlotText(" T ",tx,ty + va1, col,1);
	PlotText(" U ",ux,uy + va2, col,1);  PlotText(" V ",vx,vy + va1, col,1);
	PlotText(" W ",IIf(sup,xr2,xs2),wy + va2, col,1);
	PlotText(" X = "+NumToStr(WX,1.1)+" % ",xx,xy + va1, col,1);
	PlotText(" A = "+NumToStr(XA,1.1)+" % ",ax,ay + va2, col,1);
	PlotText(" B = "+NumToStr(AB,1.1)+" % ",bx,by + va1, col,1);
	PlotText(" C = "+NumToStr(BC,1.1)+" % ",cx,cy + va2, col,1);
	PlotText(" D = "+NumToStr(CD,1.1)+" % ",dx,dy + va1, colp,1);
	PlotText(" "+NumToStr(de,1.1)+"%",(dx+x1)/2,(dy+d1)/2,42,1);
	PlotText(" "+NumToStr(ce,1.1)+"%",(cx+x1)/2,(cy+c1)/2,42,1);
	PlotText(" "+NumToStr(XB,1.1)+" %",((xx+bx)/2)-2,(xy+by)/2, 40,1);
	PlotText(" "+NumToStr(XD,1.1)+" %",(xx+dx)/2,(xy+dy)/2, 34,1);
	PlotText(" "+NumToStr(AC,1.1)+" %",(ax+cx)/2-2,(ay+cy)/2, 10,1);
	PlotText(" "+NumToStr(BD,1.1)+" %",((bx+dx)/2)-2,(by+dy)/2, 10,1);
}
//Plot Hi-Hi Lo-Lo Lines
if(ppa==1)  {
	Plot(LineArray(dx,dy,x1,d1,0),"",42,32|4096);
	Plot(LineArray(cx,cy,x1,c1,0),"",42,32|4096);
	Plot(LineArray(sx,sy,ax,ay,1),"",35,41|4096|2048);
	Plot(LineArray(ux,uy,ax,ay,1),"",25,41|4096|2048);
	Plot(LineArray(bx,by,dx,dy,0),"",34,32|4096);
	Plot(LineArray(ax,ay,cx,cy,0),"",34,32|4096);
	Plot(LineArray(xx,xy,dx,dy,0),"",32,32|4096);
	Plot(LineArray(xx,xy,bx,by,0),"",32,32|4096);
}
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
	//Count Bars Between Pivots
	xXA=xsbi+abs(ax-xx);
	xXB=xsbi+abs(bx-xx);
	xXC=xsbi+abs(cx-xx);
	xXD=xsbi+abs(dx-xx);
	xAB=xsbi+abs(bx-ax);
	xAC=xsbi+abs(cx-ax);
	xAD=xsbi+abs(dx-ax);
	xBC=xsbi+abs(cx-bx);
	xBD=xsbi+abs(dx-bx);
	xCD=xsbi+abs(dx-cx);
//==============================
if(plx==1) {
bc=IIf(sup,sbi-xs0,sbi-xr0);
tp=IIf(sup,ys0-Vsh,yr0+Vsh);
if(Res==1)  {
col=42;
Plot(bi==xCD, "", colorYellow, styleHistogram|styleOwnScale,0,1,xsh);//sample code if lines are preferred
PlotText("XA\n | "+NumToStr(abs(xx-ax)-bc,1),xxa+xsh,tp,col,1);
PlotText("XB\n | "+NumToStr(abs(bx-xx)-bc,1),xxb+xsh,tp,col,1);
PlotText("XC\n | "+NumToStr(abs(cx-xx)-bc,1),xxc+xsh,tp,col,1);
PlotText("XD\n | "+NumToStr(abs(xx-dx)-bc,1),xxd+xsh,tp,col,1);
PlotText("AB\n | "+NumToStr(abs(bx-ax)-bc,1),xab+xsh,tp,col,1);
PlotText("AC\n | "+NumToStr(abs(cx-ax)-bc,1),xac+xsh,tp,col,1);
PlotText("AD\n | "+NumToStr(abs(dx-ax)-bc,1),xad+xsh,tp,col,1);
PlotText("BC\n | "+NumToStr(abs(cx-bx)-bc,1),xbc+xsh,tp,col,1);
PlotText("BD\n | "+NumToStr(abs(dx-bx)-bc,1),xbd+xsh,tp,col,1);
PlotText("CD\n | "+NumToStr(abs(dx-cx)-bc,1),xcd+xsh,tp,col,1);
   }
if(Sup==1)  {
col=34;
Plot(bi==xCD, "", colorYellow, styleHistogram|styleOwnScale,0,1,xsh);//sample code if lines are preferred
PlotText("| "+NumToStr(abs(xx-ax)-bc,1)+"\nXA",xxa+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(bx-xx)-bc,1)+"\nXB",xxb+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(cx-xx)-bc,1)+"\nXC",xxc+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(xx-dx)-bc,1)+"\nXD",xxd+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(bx-ax)-bc,1)+"\nAB",xab+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(cx-ax)-bc,1)+"\nAC",xac+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(dx-ax)-bc,1)+"\nAD",xad+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(cx-bx)-bc,1)+"\nBC",xbc+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(dx-bx)-bc,1)+"\nBD",xbd+xsh,tp,col,1);
PlotText("| "+NumToStr(abs(dx-cx)-bc,1)+"\nCD",xcd+xsh,tp,col,1);
   }
}
//example of plotting line with start at a future point
f50= ys0+(abs(yr0-ys0)*0.50);
Plot(LineArray(xxb,f50,xxd,f50,0),"",29,32,0,0,xsh);
//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Title = EncodeColor(55)+  Title = Name() + "     " + EncodeColor(32) + Date() +
"      " + EncodeColor(5) + "{{INTERVAL}}  " +
	EncodeColor(55)+ "     Open = "+ EncodeColor(52)+ WriteVal(O,dec) +
	EncodeColor(55)+ "     High = "+ EncodeColor(5) + WriteVal(H,dec) +
	EncodeColor(55)+ "      Low = "+ EncodeColor(32)+ WriteVal(L,dec) +
	EncodeColor(55)+ "    Close = "+ EncodeColor(52)+ WriteVal(C,dec)+
	EncodeColor(55)+ "    Volume = "+ EncodeColor(52)+ WriteVal(V,1);
