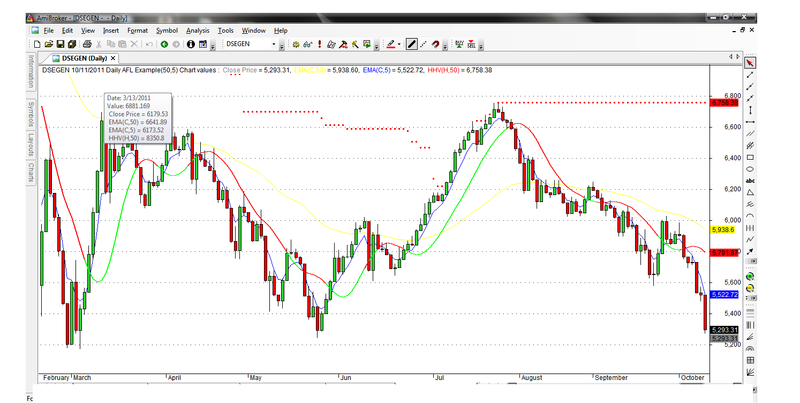

This is an ordinary afl but it’s work very good indeed.

A Triangular moving average is similar to exponential AND
weighted moving averages except A different weighting scheme
is used. Exponential AND Weighted averages assign the majority
of the weight to the most recent data. Simple moving averages
assign the weight equally across all the data. With A Triangular
moving average, the majority of the weight is assigned to the middle
portion of the data

Submitted by hbkwarez almost 11 years ago

Submitted by MarcosEn over 13 years ago

Submitted by motorfly over 13 years ago

Submitted by durgesh1712 over 13 years ago

Submitted by Tinych over 13 years ago

Submitted by northstar over 13 years ago

Copy & Paste Friendly

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

//------------------------------------------------------------------------------
//
//  Formula Name:    Triangular Moving Average
//  Author/Uploader: Foyej Ahmed Khan
//  E-mail:          foyej.ahmed@gmail.com
//  Date/Time Added: 2012
//
//------------------------------------------------------------------------------
//
//  //Triangular Moving average-Suparnova
//
//  //Anthony Faragasso
//
//  //june, 2012
//
//  /* A Triangular moving average is similar to exponential AND
//
//  weighted moving averages except A different weighting scheme
//
//  is used. Exponential AND Weighted averages assign the majority
//
//  of the weight to the most recent data. Simple moving averages
//
//  assign the weight equally across all the data. With A Triangular
//
//  moving average, the majority of the weight is assigned to the middle
//
//  portion of the data.*/
//
//  Odd=13;//enter Odd numbers only
//
//  CoefOdd=round(Odd/2);
//
//  Even=12;//enter Even numbers only
//
//  Coefeven=Even/2;
//
//  Coefeven2=Coefeven+1;
//
//  CongestionPercent=2.8;/*Set % above/below Moving average for congestion /
//  sideways market*/
//
//  TriangularOdd=MA(MA(C,CoefOdd),CoefOdd);
//
//  TriangularEven=MA(MA(C,Coefeven),Coefeven2);
//
//  finalMov_avg=IIf(Odd > even,triangularOdd,TriangularEven);
//
//  Color=colorBrightGreen;//select Moving average line color
//
//  tickercolor=colorBlack;//select price color
//
//  Plot(finalMov_avg,"",IIf(C <
//  finalmov_avg,colorRed,Color),styleLine|styleThick);
//
//  Plot(C,"",tickercolor,styleCandle);
//
//  Title=Name()+"..."+"( "+WriteIf(Odd >
//  even,WriteVal(Odd,1),WriteVal(even,1))+" ) Period
//  "+EncodeColor(Color)+"Triangular"+WriteIf(Odd > even,"ODD","EVEN")+" Moving
//  Average"+"..."+EncodeColor(colorBlack)+ WriteIf(C < finalMov_avg,"Close is
//  "+EncodeColor(colorRed)+"Below"+EncodeColor(colorBlack)+" Moving Average by
//  ","Close is"+EncodeColor(colorBrightGreen)+"
//  Above"+EncodeColor(colorBlack)+" Moving Average by
//  ")+"("+WriteVal(((C/finalMov_avg)-1)*100,1.1)+"%
//  )"+"\n"+WriteIf(finalmov_avg-Ref(finalmov_avg,-1)>0," Slope Of Average is
//  UP : ","Slope Of Average is DOWN :")+WriteIf((((C/finalMov_avg)-1)*100 <=
//  CongestionPercent AND ((C/finalMov_avg)-1)*100 >=
//  -CongestionPercent),EncodeColor(colorYellow)+" with Price Congestion /
//  Divergence to Average ","")+"\n"+WriteIf(Ref(C,-1) < Ref(finalmov_avg,-1)
//  AND C > finalmov_avg,EncodeColor(colorGreen)+"Possible Change in Trend From
//  Down to Up"+"\n"+" OR Short Term Correction of Previous
//  Trend",WriteIf(Ref(C,-1) > Ref(finalmov_avg,-1) AND C <
//  finalmov_avg,EncodeColor(colorRed)+"Possible Change in Trend From Up to
//  Down "+"\n"+" OR Short Term Correction to Previous
//  Trend",""))+"\n"+WriteIf(C > finalmov_avg,EncodeColor(colorGreen)+"Close
//  has been above Moving Average ( "+WriteVal(BarsSince(C < finalmov_avg),1)+"
//  ) Bars",EncodeColor(colorRed)+"Close has been Below Moving Average (
//  "+WriteVal(BarsSince(C > finalmov_avg),1)+" )
//  Bars")+"\n"+EncodeColor(colorBlack)+"The average # of Bars Above (
//  "+WriteVal(round(Cum(BarsSince(C < finalmov_avg)/Cum(1))),1)+" )"+"\n"+"The
//  average # of Bars Below ( "+WriteVal(round(Cum(BarsSince(C >
//  finalmov_avg)/Cum(1))),1)+" )";
//
//  _SECTION_BEGIN("AFL Example");
//
//  /*
//
//  This is an attempt to provide a basic trading system AFL. The system is
//  purely imaginary
//
//  AND NOT provided as one that would make money. This is just to provide a
//  guide to learners
//
//  on the common components of writing AFL.
//
//  Prepared by Graham Kavanagh 12 Aug 2005
//
//  AB Write http://e-wire.net.au/~eb_kavan/ab_write.htm
//
//  When you copy/paste ensure the existing continuous lines have not been
//  wrapped. This wrapping
//
//  can create error signals when you try to use the code. Click on the check
//  afl button in the
//
//  editor before trying to apply or scan.
//
//  I have used slash-asterisk /* */ /* for my comments to get around the
//  problem of wrapping,
//
//  which could happen if you used double slash //
//
//  I hope this helps the beginners in creating AFL code
//
//  */
//
//  /*firstly some basics common*/
//
//  SetBarsRequired(10000,10000); /* this ensures that the charts include all
//  bars AND NOT just those on screen */
//
//  SetFormulaName("Sample System"); /*name it for backtest report
//  identification */
//
//  SetTradeDelays( 1, 1, 1, 1 ); /* delay entry/exit by one bar */
//
//  SetOption( "initialequity", 100000 ); /* starting capital */
//
//  PositionSize = -10; /* trade size will be 10% of available equty */
//
//  SetOption( "MaxOpenPositions", 6 ); /* I don't want to comit more than 60%
//  of Equity at any one time */
//
//  SetOption( "PriceBoundChecking", 1 ); /* trade only within the chart bar's
//  price range */
//
//  SetOption( "CommissionMode", 2 ); /* set commissions AND costs as $ per
//  trade */
//
//  SetOption( "CommissionAmount", 32.95 ); /* commissions AND cost */
//
//  SetOption( "UsePrevBarEquityForPosSizing", 1 ); /*set the use of last bars
//  equity for trade size*/
//
//  PositionScore = 100/C; /*Set the order for which stock trades when get
//  mulitple signals in one bar in backtesting */
//
//  //Trade system
//
//  /*
//
//  Buy when exp mov avg crosses and the high is highest for 50 bars
//
//  Sell when exp mov avg crosses back
//
//  Cross is first variable moves to above the second variable
//
//  */
//
//  LongPer = Param("Long Period", 50, 30, 100, 5 ); /* select periods with
//  parameter window */
//
//  ShortPer = Param("Short Period", 5, 3, 10, 1 );
//
//  LongMA = EMA( C, LongPer );
//
//  ShortMA = EMA( C, ShortPer );
//
//  LastHigh = HHV( H, LongPer );
//
//  Buy = Cross( ShortMA, LongMA ) AND H > Ref( LastHigh, -1 );
//
//  /* ref,-1 is used for the high to have todays high greater than the
//  previous 50 bar high.
//
//  To just use H==LastHigh couold mean a previous high was equal to current
//  high */
//
//  Sell = Cross( LongMA, ShortMA );
//
//  /* exrem is one method to remove surplus strade signals*/
//
//  Buy = ExRem(Buy,Sell);
//
//  Sell = ExRem(Sell,Buy);
//
//  /* Now for exploration results.
//
//  Will restrict results of exploration to when the Buy AND Sell signals occur
//
//  You can use Filter=1; to display every bar result */
//
//  Filter = Buy OR Sell;
//
//  AddTextColumn( FullName(), "Company Name" );
//
//  AddColumn( Buy, "Buy", 1 );
//
//  AddColumn( Sell, "Sell", 1 );
//
//  AddColumn( C, "Close", 1.3 );
//
//  AddColumn( H, "High", 1.3 );
//
//  AddColumn( LastHigh, "HHV", 1.3 );
//
//  AddColumn( LongMA, "Long MA", 1,3 );
//
//  AddColumn( ShortMA, "Short MA", 1,3 );
//
//  /* Now to show this on a chart */
//
//  /* I use WriteVal to limit the values to the wanted number of decimal
//  places,
//
//  seeing a value of 5 decimal places can be frustrating.
//
//  I have included additional information in the plot title sections to add
//  some
//
//  information to the title block */
//
//  GraphXSpace = 10; /* create empty space of 10% top and bottom of chart */
//
//  Plot( C, " Close Price", colorGrey50, styleBar );
//
//  Plot( LongMA, " EMA(C,"+WriteVal(LongPer,1)+")", colorYellow,
//  styleLine|styleNoRescale );
//
//  Plot( ShortMA, " EMA(C,"+WriteVal(ShortPer,1)+")", colorblue,
//  styleLine|styleNoRescale );
//
//  Plot( Ref(Lasthigh,-1), " HHV(H,"+WriteVal(LongPer,1)+")", colorRed,
//  styleNoLine|styleDots|styleNoRescale );
//
//  /* styleNoRescale in the plots stops the added plots from compressing the
//  original bar chart to the middle of the pane */
//
//  PlotShapes( shapeUpArrow*Buy, colorGreen, 0, L, -10 );
//
//  PlotShapes( shapeDownArrow*Sell, colorRed, 0, H, -10 );
//
//  Title = " {{NAME}} {{DATE}} {{INTERVAL}} "+_DEFAULT_NAME()+" Chart values :
//  {{VALUES}} ";
//
//  /* _DEFAULT_NAME() shows the section name or, if not present, the file name
//
//  the items in {{}} are short cuts for the title block. It can be done long
//  hand
//
//  Title = Name() +" "+ Date() +" "+ "{{INTERVAL}}"+_DEFAULT_NAME()+" Chart
//  values : " +
//
//  " Close Price = " + C +
//
//  " EMA(C,"+WriteVal(LongPer,1)+") = "+WriteVal(LongMA,1.3) +
//
//  " EMA(C,"+WriteVal(ShortPer,1)+") = "+WriteVal(ShortMA,1.3) +
//
//  " HHV(H,"+WriteVal(LongPer,1)+") = "+WriteVal(Ref(LastHigh,-1),1.3) ;
//
//  */
//
//  _SECTION_END();
//
//------------------------------------------------------------------------------

//Triangular Moving average
//Anthony Faragasso
//December, 2002

/* A Triangular moving average is similar to exponential AND
weighted moving averages except A different weighting scheme
is used. Exponential AND Weighted averages assign the majority
of the weight to the most recent data. Simple moving averages
assign the weight equally across all the data. With A Triangular
moving average, the majority of the weight is assigned to the middle
portion of the data.*/

Odd=13;//enter Odd numbers only
CoefOdd=round(Odd/2);

Even=12;//enter Even numbers only
Coefeven=Even/2;
Coefeven2=Coefeven+1;

CongestionPercent=2.8;/*Set % above/below Moving average for congestion / sideways market*/

TriangularOdd=MA(MA(C,CoefOdd),CoefOdd);
TriangularEven=MA(MA(C,Coefeven),Coefeven2);

finalMov_avg=IIf(Odd > even,triangularOdd,TriangularEven);

Color=colorBrightGreen;//select Moving average line color
tickercolor=colorBlack;//select price color

Plot(finalMov_avg,"",IIf(C < finalmov_avg,colorRed,Color),styleLine|styleThick);
Plot(C,"",tickercolor,styleCandle);

Title=Name()+"..."+"( "+WriteIf(Odd > even,WriteVal(Odd,1),WriteVal(even,1))+" ) Period "+EncodeColor(Color)+"Triangular"+WriteIf(Odd > even,"ODD","EVEN")+" Moving Average"+"..."+EncodeColor(colorBlack)+ WriteIf(C < finalMov_avg,"Close is "+EncodeColor(colorRed)+"Below"+EncodeColor(colorBlack)+" Moving Average by ","Close is"+EncodeColor(colorBrightGreen)+" Above"+EncodeColor(colorBlack)+" Moving Average by ")+"("+WriteVal(((C/finalMov_avg)-1)*100,1.1)+"% )"+"\n"+WriteIf(finalmov_avg-Ref(finalmov_avg,-1)>0," Slope Of Average is UP : ","Slope Of Average is DOWN :")+WriteIf((((C/finalMov_avg)-1)*100 <= CongestionPercent AND ((C/finalMov_avg)-1)*100 >= -CongestionPercent),EncodeColor(colorYellow)+" with Price Congestion / Divergence to Average ","")+"\n"+WriteIf(Ref(C,-1) < Ref(finalmov_avg,-1) AND C > finalmov_avg,EncodeColor(colorGreen)+"Possible Change in Trend From Down to Up"+"\n"+" OR Short Term Correction of Previous Trend",WriteIf(Ref(C,-1) > Ref(finalmov_avg,-1) AND C < finalmov_avg,EncodeColor(colorRed)+"Possible Change in Trend From Up to Down "+"\n"+" OR Short Term Correction to Previous Trend",""))+"\n"+WriteIf(C > finalmov_avg,EncodeColor(colorGreen)+"Close has been above Moving Average ( "+WriteVal(BarsSince(C < finalmov_avg),1)+" ) Bars",EncodeColor(colorRed)+"Close has been Below Moving Average ( "+WriteVal(BarsSince(C > finalmov_avg),1)+" ) Bars")+"\n"+EncodeColor(colorBlack)+"The average # of Bars Above ( "+WriteVal(round(Cum(BarsSince(C < finalmov_avg)/Cum(1))),1)+" )"+"\n"+"The average # of Bars Below ( "+WriteVal(round(Cum(BarsSince(C > finalmov_avg)/Cum(1))),1)+" )";
_SECTION_BEGIN("AFL Example");
/*
This is an attempt to provide a basic trading system AFL. The system is purely imaginary
 AND NOT provided as one that would make money. This is just to provide a guide to learners
 on the common components of writing AFL.

 Prepared by Graham Kavanagh 12 Aug 2005
 AB Write http://e-wire.net.au/~eb_kavan/ab_write.htm

When you copy/paste ensure the existing continuous lines have not been wrapped. This wrapping
 can create error signals when you try to use the code. Click on the check afl button in the
 editor before trying to apply or scan.
 I have used slash-asterisk /*  */ /* for my comments to get around the problem of wrapping,
 which could happen if you used double slash //

I hope this helps the beginners in creating AFL code

*/

/*firstly some basics common*/
SetBarsRequired(10000,10000); /* this ensures that the charts include all bars AND NOT just those on screen */
SetFormulaName("Sample System"); /*name it for backtest report identification */
SetTradeDelays( 1, 1, 1, 1 ); /* delay entry/exit by one bar */
SetOption( "initialequity", 100000 ); /* starting capital */
PositionSize = -10; /* trade size will be 10% of available equty */
SetOption( "MaxOpenPositions", 6 ); /* I don't want to comit more than 60% of Equity at any one time */
SetOption( "PriceBoundChecking", 1 ); /* trade only within the chart bar's price range */
SetOption( "CommissionMode", 2 ); /* set commissions AND costs as $ per trade */
SetOption( "CommissionAmount", 32.95 ); /* commissions AND cost */
SetOption( "UsePrevBarEquityForPosSizing", 1 ); /*set the use of last bars equity for trade size*/
PositionScore = 100/C; /*Set the order for which stock trades when get mulitple signals in one bar in backtesting */

//Trade system
/*
Buy when exp mov avg crosses and the high is highest for 50 bars
Sell when exp mov avg crosses back
Cross is first variable moves to above the second variable
*/

LongPer = Param("Long Period", 50, 30, 100, 5 ); /* select periods with parameter window */
ShortPer = Param("Short Period", 5, 3, 10, 1 );

LongMA = EMA( C, LongPer );
ShortMA = EMA( C, ShortPer );
LastHigh = HHV( H, LongPer );

Buy = Cross( ShortMA, LongMA ) AND H > Ref( LastHigh, -1 );
/* ref,-1 is used for the high to have todays high greater than the previous 50 bar high.
   To just use H==LastHigh couold mean a previous high was equal to current high */
Sell = Cross( LongMA, ShortMA );
/* exrem is one method to remove surplus strade signals*/
Buy = ExRem(Buy,Sell);
Sell = ExRem(Sell,Buy);


/* Now for exploration results.
   Will restrict results of exploration to when the Buy AND Sell signals occur
   You can use Filter=1; to display every bar result */

Filter = Buy OR Sell;
AddTextColumn( FullName(), "Company Name" );
AddColumn( Buy, "Buy", 1 );
AddColumn( Sell, "Sell", 1 );
AddColumn( C, "Close", 1.3 );
AddColumn( H, "High", 1.3 );
AddColumn( LastHigh, "HHV", 1.3 );
AddColumn( LongMA, "Long MA", 1,3 );
AddColumn( ShortMA, "Short MA", 1,3 );


/* Now to show this on a chart */
/* I use WriteVal to limit the values to the wanted number of decimal places,
   seeing a value of 5 decimal places can be frustrating.
   I have included additional information in the plot title sections to add some
   information to the title block */

GraphXSpace = 10; /* create empty space of 10% top and bottom of chart */

Plot( C, " Close Price", colorGrey50, styleBar );
Plot( LongMA, " EMA(C,"+WriteVal(LongPer,1)+")", colorYellow, styleLine|styleNoRescale );
Plot( ShortMA, " EMA(C,"+WriteVal(ShortPer,1)+")", colorBlue, styleLine|styleNoRescale );
Plot( Ref(Lasthigh,-1), " HHV(H,"+WriteVal(LongPer,1)+")", colorRed, styleNoLine|styleDots|styleNoRescale );

/* styleNoRescale in the plots stops the added plots from compressing the original bar chart to the middle of the pane */

PlotShapes( shapeUpArrow*Buy, colorGreen, 0, L, -10 );
PlotShapes( shapeDownArrow*Sell, colorRed, 0, H, -10 );

Title = " {{NAME}} {{DATE}} {{INTERVAL}} "+_DEFAULT_NAME()+" Chart values : {{VALUES}} ";
/* _DEFAULT_NAME() shows the section name or, if not present, the file name
the items in {{}} are short cuts for the title block. It can be done long hand

Title = Name() +" "+ Date() +" "+ "{{INTERVAL}}"+_DEFAULT_NAME()+" Chart values : " +
" Close Price = " + C +
" EMA(C,"+WriteVal(LongPer,1)+") = "+WriteVal(LongMA,1.3) +
" EMA(C,"+WriteVal(ShortPer,1)+") = "+WriteVal(ShortMA,1.3) +
" HHV(H,"+WriteVal(LongPer,1)+") = "+WriteVal(Ref(LastHigh,-1),1.3) ;

 */

_SECTION_END();

1 comments

1. Foyej Ahmed Khan

almost 13 years ago

Every DSE Technical analyst can see this. I hope this will help to them for trading. It,s a simple but effective Afl for Amibroker.
Thank to everyone who encourage me to learn TA.

Report as Spam

Please login here to leave a comment.

Back

Stock Portfolio Organizer

WiseTrader Toolbox

Triangular Moving Average for Amibroker (AFL)
Foyej Ahmed Khan
almost 13 years ago
Amibroker (AFL)

Screenshots

Similar Indicators / Formulas

Indicator / Formula

1 comments

Leave Comment

Stock Portfolio Organizer

WiseTrader Toolbox

Triangular Moving Average for Amibroker (AFL) Foyej Ahmed Khan almost 13 years ago Amibroker (AFL)

Screenshots

Similar Indicators / Formulas

Indicator / Formula

1 comments

Leave Comment

Triangular Moving Average for Amibroker (AFL)
Foyej Ahmed Khan
almost 13 years ago
Amibroker (AFL)
