Trendwave on Amibroker for Amibroker (AFL)
niladri
almost 12 years ago
Amibroker (AFL)

Rating:
4 / 5 (Votes 10)
Tags:
oscillator, amibroker, bands

This is modified “Mikes Wave Trend” using Wilder’s Moving Average & is exact same code as “TrendWave.mq4” in Metatrader.

Video On TrendWave Trading : http://www.youtube.com/watch?v=7vhIsk51_Ro

The four dashed lines in Trendend are 60/50 & -60/-50 , a BUY is triggered only when the lines cross within or below the lower band, for sell it has to happen on the upper band.

Strong signal: If we see a Bollinger squeeze around the trigger level, wait for 3 bars to confirm the squeeze breakout direction & go with the trend direction.

Modification: In Trendwave for Metatrader, we have signals that show up as dots at the crossover point around the target bands, however, when I checked Trendwave live in MT4, I have seen the dot repainting. In this code the dot’s do not appear. Using Wilder’s MA smoothened the crossover & eliminated a lot of jitters in lower TF. Shadowed BB added in the code to identify BB squeeze zones.

This indicator is for fast trade & best used at lower TF ( play it from 3:10PM to 3:25PM ) & see what it can do on 1M/3M TF.

This is by far one of the best leading indicators available…it’s best use case is when MKT high have higher volatility e.g at the start of the session or towards the end.

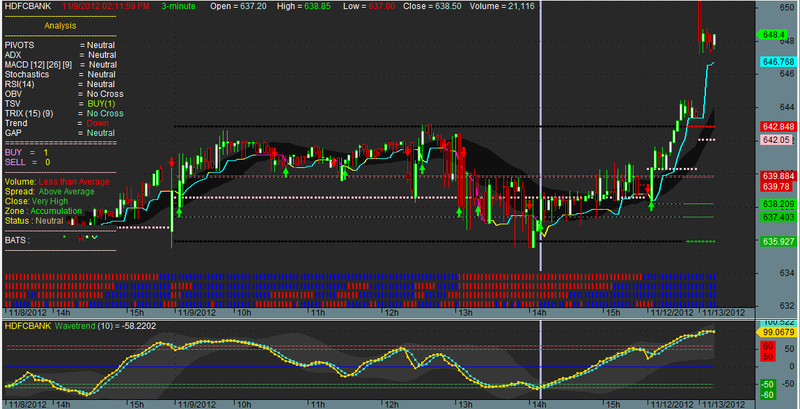

Screenshots

Similar Indicators / Formulas

Bman's HaDiffCO
Submitted by kaiji almost 15 years ago
Floor & Roor
Submitted by rajbhagalpur about 14 years ago
MACD with BB
Submitted by jahan999 over 14 years ago
Didi Index with Ribbon
Submitted by projsx over 12 years ago
DTOscillator
Submitted by hemsvg almost 14 years ago
TD Pressure Ratio
Submitted by javgeek almost 14 years ago

Indicator / Formula

Copy & Paste Friendly
SetChartOptions(0,chartShowArrows|chartShowDates);
SetChartBkColor(ParamColor("Outer Panel",colorPaleBlue));
SetChartBkGradientFill(ParamColor("Upper Chart",colorDarkGrey),ParamColor("Lower Chart",colorDarkGrey));
GraphXSpace = Param("GraphXSpace",7,0,20,0.5);

_SECTION_BEGIN("WaveTrend");

Period        = 10;                              // Channel periods default is 10.
AvgPeriod     = 20;                              // Average periods default is 21.

AP            = Avg;                             // Typical Price = ( High + Low + Close ) / 3
ESA           = Wilders(AP, Period);
D             = Wilders(abs(AP - ESA), Period);
CI            = (AP - ESA) / (0.015 * D);

WaveTrend1    = EMA(CI, AvgPeriod);              // Gold Color ( BUY )
WaveTrend2    = MA(WaveTrend1,4);                // Turquoise Color ( SELL )

Plot(WaveTrend1,"WaveTrend1",colorGold,styleDots | styleThick);
Plot(WaveTrend2,"WaveTrend2",colorTurquoise,styleDots);

Plot(0,"",colorBlue,styleNoLabel);

Plot( -60 , "", colorGreen,styleDashed);
Plot( -50 , "", colorGreen,styleDashed);
Plot( 50 , "", colorRed,styleDashed);
Plot( 60 , "", colorRed,styleDashed);

_SECTION_END();

Title=EncodeColor(colorYellow)+ Name()+ EncodeColor(colorLime) +"  Wavetrend " + EncodeColor(colorPaleTurquoise) +"(" +Period+ ") = " + EncodeColor(colorWhite) + WaveTrend1;

_SECTION_BEGIN("Bollinger Bands");
P = ParamField("Price field",-1);
Periods = Param("Periods", 20, 2, 100, 1 );
Width = Param("Width", 2, 0, 10, 0.05 );
Color = ParamColor("Color", colorLightGrey );
Style = ParamStyle("Style", styleLine | styleNoLabel ) | styleNoLabel;

bbt = BBandTop( P, Periods, Width );
bbb = BBandBot( P, Periods, Width );

PlotOHLC( bbt, bbt, bbb, bbb, "", ColorBlend( Color, colorDarkGrey, 0.9 ), styleNoLabel | styleCloud | styleNoRescale, Null, Null, Null, -1 );
_SECTION_END();

10 comments

1. gacsekar

This is an amazing indicator.
Thanks for sharing.
gacsekar

2. niladri

Note: “0” Line of Trendwave is a potential reversal area, if you have opened a trading with 2 lots ( on top or lower zone cross ), ensure to book partial profit ( 1 lot ) at “0” line, if the the Trendwave is seen loosing momentum around the “0” line i.e. the slope angle of the wave need to 45 degree at a minimum if the angle is lower value like 10 to 20 degree, better protect your profit by closing 1 lot out of the two in trade.

3. anandnst

Hello niladri,

Good modification. Works well in Daily , weekly timeframe.

4. buchacek

Stochastic-momentum indicator elsewhere in the Library has exactly the same crossings so nothing new here.

5. wonderif

thank you

6. praveen5344

Can anyone please post the link to the formula which is in upper chart……the one with the analysis panner…..

7. ssdas0172

hi niladri,
its really works. try to buy sell signal include.
i’m happy with that. thanks
Siddhartha

8. ssdas0172

dear niladri,
i need an afl which can help me to ignore Choppy Signal.
Siddhartha. From Bangladesh.

9. lovebliss

dear niladri,

Well done with the modification with Bollinger Bands added! Do you bother to do the same modifications for the original MT4 indicator? Many thanks!

10. David999

Thanks very much, this afl very helpfull. I pray GOD will bless you. Gbu
