_SECTION_BEGIN("ShenbaKumar  pivots");
/* **********************************
Code to automatically identify pivots
By Kumaresan Selvaraj
 ********************************** */
// -- what will be our lookback range for the hh and ll?
farback = Param("How Far back to go", 100, 50, 5000, 10);
nBars = Param("Number of bars", 12, 5, 40);
// -- Title.

Title = Name() + " (" + StrLeft(FullName(), 15) + ") O: " + Open + ", H: "
+ High + ", L: " + Low + ", C: " + Close;
// -- Plot basic candle chart
PlotOHLC(Open, High, Low, Close,
"BIdx = " + BarIndex() +
"\n" + "O = " + O + "\n" + "H = " + H + "\n" + "L = " + L
 + "\n" + "C ", colorBlack, styleCandle);

GraphXSpace = 7;
// -- Create 0-initialized arrays the size of barcount
aHPivs = H - H;
aLPivs = L - L;
// -- More for future use, not necessary for basic plotting
aHPivHighs = H - H;
aLPivLows = L - L;
aHPivIdxs = H - H;
aLPivIdxs = L - L;
nHPivs = 0;
nLPivs = 0;
lastHPIdx = 0;
lastLPIdx = 0;
lastHPH = 0;
lastLPL = 0;
curPivBarIdx = 0;
// -- looking back from the current bar, how many bars
// back were the hhv and llv values of the previous
// n bars, etc.?
aHHVBars = HHVBars(H, nBars);
aLLVBars = LLVBars(L, nBars);
aHHV = HHV(H, nBars);
aLLV = LLV(L, nBars);
// -- Would like to set this up so pivots are calculated back from
// last visible bar to make it easy to "go back" and see the pivots
// this code would find. However, the first instance of
// _Trace output will show a value of 0
aVisBars = Status("barvisible");
nLastVisBar = LastValue(Highest(IIf(aVisBars, BarIndex(), 0)));
_TRACE("Last visible bar: " + nLastVisBar);
// -- Initialize value of curTrend
curBar = (BarCount - 1);
curTrend = "";

if (aLLVBars[curBar] < aHHVBars[curBar])
{
  curTrend = "D";
}
else
{
  curTrend = "U";
}
// -- Loop through bars. Search for
// entirely array-based approach
// in future version
for (i = 0; i < farback; i++)
{
  curBar = (BarCount - 1) - i;
  // -- Have we identified a pivot? If trend is down...
  if (aLLVBars[curBar] < aHHVBars[curBar])
  {
    // ... and had been up, this is a trend change
    if (curTrend == "U")
    {
      curTrend = "D";
      // -- Capture pivot information
      curPivBarIdx = curBar - aLLVBars[curBar];
      aLPivs[curPivBarIdx] = 1;
      aLPivLows[nLPivs] = L[curPivBarIdx];
      aLPivIdxs[nLPivs] = curPivBarIdx;
      nLPivs++;
    }
    // -- or current trend is up
  }
  else
  {
    if (curTrend == "D")
    {
      curTrend = "U";
      curPivBarIdx = curBar - aHHVBars[curBar];
      aHPivs[curPivBarIdx] = 1;
      aHPivHighs[nHPivs] = H[curPivBarIdx];
      aHPivIdxs[nHPivs] = curPivBarIdx;
      nHPivs++;
    }
    // -- If curTrend is up...else...
  }
  // -- loop through bars
}
// -- Basic attempt to add a pivot this logic may have missed
// -- OK, now I want to look at last two pivots. If the most
// recent low pivot is after the last high, I could
// still have a high pivot that I didn't catch
// -- Start at last bar
curBar = (BarCount - 1);
candIdx = 0;
candPrc = 0;
lastLPIdx = aLPivIdxs[0];
lastLPL = aLPivLows[0];
lastHPIdx = aHPivIdxs[0];
lastHPH = aHPivHighs[0];

if (lastLPIdx > lastHPIdx)
{
  // -- Bar and price info for candidate pivot
  candIdx = curBar - aHHVBars[curBar];
  candPrc = aHHV[curBar];
  if (
  lastHPH < candPrc AND
  candIdx > lastLPIdx AND
  candIdx < curBar)
  {
    // -- OK, we'll add this as a pivot...
    aHPivs[candIdx] = 1;
    // ...and then rearrange elements in the
    // pivot information arrays
    for (j = 0; j < nHPivs; j++)
    {
      aHPivHighs[nHPivs - j] = aHPivHighs[nHPivs -
      (j + 1)];
      aHPivIdxs[nHPivs - j] = aHPivIdxs[nHPivs - (j + 1)];
    }
    aHPivHighs[0] = candPrc;
    aHPivIdxs[0] = candIdx;
    nHPivs++;
  }
}
else
{
  // -- Bar and price info for candidate pivot
  candIdx = curBar - aLLVBars[curBar];
  candPrc = aLLV[curBar];
  if (lastLPL > candPrc AND candIdx > lastHPIdx AND candIdx < curBar)
  {
    // -- OK, we'll add this as a pivot...
    aLPivs[candIdx] = 1;
    // ...and then rearrange elements in the
    // pivot information arrays
    for (j = 0; j < nLPivs; j++)
    {
      aLPivLows[nLPivs - j] = aLPivLows[nLPivs - (j + 1)];
      aLPivIdxs[nLPivs - j] = aLPivIdxs[nLPivs - (j + 1)];
    }
    aLPivLows[0] = candPrc;
    aLPivIdxs[0] = candIdx;
    nLPivs++;
  }
}
// -- Dump inventory of high pivots for debugging
/*
for (k=0; k<nHPivs; k++) {
_TRACE("High pivot no. " + k
+ " at barindex: " + aHPivIdxs[k] + ", "
+ WriteVal(ValueWhen(BarIndex()==aHPivIdxs[k],
DateTime(), 1), formatDateTime)
+ ", " + aHPivHighs[k]);
}
 */

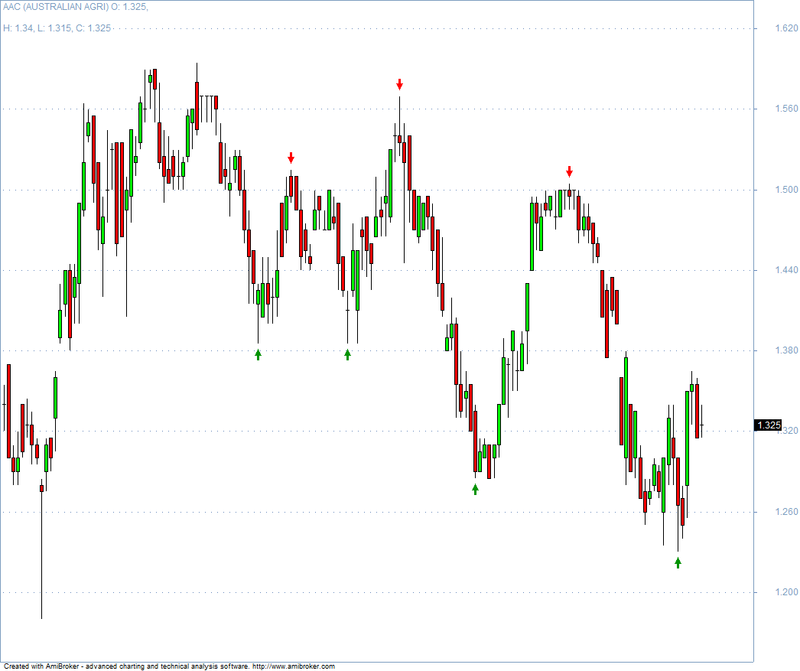

// -- OK, let's plot the pivots using arrows
PlotShapes(IIf(aHPivs == 1, shapeDownArrow, shapeNone), colorRed, 0, High, Offset =  - 15);
PlotShapes(IIf(aLPivs == 1, shapeUpArrow, shapeNone), colorGreen, 0, Low, Offset =  - 15);
_SECTION_END();
