Group all major indicators crossover in single window

Submitted by halfman almost 14 years ago

Submitted by morgen over 12 years ago

Submitted by k.raaja almost 15 years ago

Submitted by alliswell over 12 years ago

Submitted by brevco about 15 years ago

Submitted by rattanasak over 11 years ago

Copy & Paste Friendly

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

_SECTION_BEGIN("MultipleRibbon");
// You plot a Ribbon by calling the function as follows: MultiRibbon("Color", "Ribbon Number", "Name To Display");
// The "Ribbon Number" is simply the order of the ribbon, starting with 1 as the bottom Ribbon. You can add as many
// ribbons as you want, until you run out of chart space. Just keep track of the 'Serial Number' (Ribbon Number). :-)


RibbonThickness = Param("Ribbon Thickness", 8, 1, 15, 0.1);
Font                = ParamList("Font:","Arial|Calibri|Futura|Tahoma|Times New Roman");
"";
function GfxConvertBarToPixelX(Bar)
{
 lvb = Status("lastvisiblebar"); fvb = Status("firstvisiblebar");
 pxchartleft = Status("pxchartleft"); pxchartwidth = Status("pxchartwidth");
 return pxchartleft + Bar  * pxchartwidth / (Lvb - fvb + 1);
}

procedure MultiRibbon(RibbonColor, Position, Label)
{
 LineColor  = colorLightGrey;
 Position   = RibbonThickness * Position;
 x2 = Status("pxchartright");
 y2 = Status("pxchartbottom");

 RibbonColor = IIf(GfxConvertBarToPixelX(BarIndex()-Status("firstvisiblebarindex")) > y2/1.5 * (RibbonThickness/100) * 18 ,
               RibbonColor, colorYellow);

 Plot(0, "", LineColor, styleOwnScale | styleNoLabel, 0, 100);
 Plot(Position, "", LineColor, styleOwnScale | styleNoLabel, 0, 100);
 Plot(Position, "", RibbonColor, styleArea | styleOwnScale | styleNoLabel, 0, 100);

 GfxSetTextColor(colorBlack);
 GfxSelectFont(Font, y2/1.5 * (RibbonThickness/100), 400);
 GfxDrawText(Label, 8, y2 * 1.001 -(y2 * Position/100) , y2/1.5 * (RibbonThickness/100) * 17, y2, 2 + 32 + 256);

}

//=================================================================================================================





//============================================ ElderIndex ======================================
bull=High - EMA(Close,9);
bear=Low - EMA(Close,9);
bb=bull+bear;

r1Up= Cross(bb,EMA(bb,9)) OR Cross(EMA(bb,9),0) ;
r1Down=Cross(EMA(bb,9),bb)  OR Cross(0,EMA(bb,9)) ;
//r1Up=Sum(r1Up,3)>0;
//r1Down=Sum(r1Down,3)>0;

r1= IIf( r1Up ,colorGreen,IIf(r1Down,colorRed,colorGrey40));

//////////////////FI////////////////
FI = (Close - Ref(Close, -1)) * V;

r7Up= Cross(fi,EMA(fi,9)) OR Cross(EMA(fi,9),0) ;
r7Down=Cross(EMA(fi,9),fi)  OR Cross(0,EMA(fi,9)) ;
//r7Up=Sum(r7Up,3)>0;
//r7Down=Sum(r7Down,3)>0;

r7=IIf( r7Up ,colorGreen,IIf(r7Down,colorRed,colorGrey40));
///////////////////////////////////


//============================================ Guppy  ======================================

Trigger = Param("Trigger",21,1,55,1);

Short1 = EMA (C,3)+ EMA((C-EMA(Close,3)),3)+
EMA (C,5)+ EMA((C-EMA(Close,5)),5)+
EMA (C,8)+ EMA((C-EMA(Close,8)),8)+
EMA (C,10)+ EMA((C-EMA(Close,10)),10)+
EMA (C,12)+ EMA((C-EMA(Close,12)),12)+
EMA (C,15)+ EMA((C-EMA(Close,15)),15);

LONG2 = EMA (C,30)+ EMA((C-EMA(Close,30)),30)+
EMA (C,35)+ EMA((C-EMA(Close,35)),35)+
EMA (C,40)+ EMA((C-EMA(Close,40)),40)+
EMA (C,45)+ EMA((C-EMA(Close,45)),45)+
EMA (C,50)+ EMA((C-EMA(Close,50)),50)+
EMA (C,55)+ EMA((C-EMA(Close,55)),55)+
EMA (C,60)+ EMA((C-EMA(Close,60)),60);

GuppyMMAOscillator = ((Short1-Long2)/Long2)*100;

GMMACD=(((short1-Long2)/long2)*100)-EMA(((short1-long2)/long2)*100,9);



r2Up=Cross(GuppyMMAOscillator,EMA(GuppyMMAOscillator, Trigger))             ;
r2Down=Cross(EMA(GuppyMMAOscillator, Trigger),GuppyMMAOscillator)   ;
//r2Down= Cross(EMA(GuppyMMAOscillator, Trigger),GuppyMMAOscillator)        ;
//r2Down=Sum(r2Down,3)>0;

r2= IIf( r2Up ,colorGreen,IIf(r2Down,colorRed,colorGrey40));

//============================================ MACD =======================
MACDcrossup= Cross(MACD(),Signal())  ;
MACDcrossdown=Cross(Signal(),MACD());

r3Up= MACDcrossup;
r3Down=MACDcrossdown;

r3= IIf( r3Up,colorGreen,IIf(r3Down,colorRed,colorGrey40));


//---------------------------------------------------------------------------

//============================================ MFI =======================
periods = Param( "Periods", 14, 2, 200, 1 );
MFCrossUp=Cross(MFI(periods),MA(MFI(periods),9));
MFCrossDown=Cross(MA(MFI(periods),9),MFI(periods));

r4Up=MFCrossUp ;
r4Down=MFCrossDown ;

r4= IIf( r4Up,colorGreen,IIf(r4Down,colorRed,colorGrey40));


//--------------------------------------------CCI-------------------------------
periods = Param( "Periods", 14, 2, 200, 1 );
CCICrossUp=Cross(CCI(periods),MA(CCI(periods),9));
CCICrossDown=Cross(MA(CCI(periods),9),CCI(periods));

r8Up=CCICrossUp;
r8Down=CCICrossDown;

r8= IIf( r8Up,colorGreen,IIf(r8Down,colorRed,colorGrey40));


/////////////////////////////////////////////

//========================================== ADX ===========================

//============================================ ADX ======================================
bull=High - EMA(Close,13);
bear=Low - EMA(Close,13);
bb=bull+bear;

ADXCond=PDI()>27 OR MDI()>27 OR ADX() >27;

r5= IIf( ADXCond,colorBlue,colorGrey40);

////////////////////////////////////KAMA//////////////

LBPeriods = Param( "LB Periods", 10, 1, 200, 1 );

FSCPeriods = Param( "FSC Periods", 2, 1, 200, 1 );

SSCPeriods = Param( "SSC Periods", 30, 1, 200, 1 );

FastSmoothConst = 2 / ( FSCPeriods + 1 );

SlowSmoothConst = 2 / ( SSCPeriods + 1 );

Direction = abs( Close - Ref( Close, -LBPeriods ) );

Volatility = Sum( abs( Close - Ref( Close, -1 ) ), LBPeriods );

EfficiencyRatio = Direction / Volatility;

SC = ( EfficiencyRatio * ( FastSmoothConst - SlowSmoothConst ) +
SlowSmoothConst ) ^ 2;

KAMA = AMA( Close, SC );



up=Cross(Close,KAMA);
down=Cross(KAMA,Close);



r6= IIf( Up,colorGreen,IIf(Down,colorRed,colorGrey40));

//////////////////////////////////////////////////////////

MultiRibbon(r8, 1, "CCI");
MultiRibbon(r6, 2, "kama");
MultiRibbon(r5, 3, "adx");
MultiRibbon(r4, 4, "mfi");
MultiRibbon(r7, 5, "fi");
MultiRibbon(r1, 6, "elder");
MultiRibbon(r3, 7, "macd");
MultiRibbon(r2, 8, "guppy");


//ToolTip="r5: "+r5+" r2: "+r2;  //32 red 27 green  29 blue

function frsum(){
rsum1=0;
rsum1=IIf(r1==32,-1,IIf(r1==27,1,0));
rsum1+=IIf(r2==32,-1,IIf(r2==27,1,0));
rsum1+=IIf(r3==32,-1,IIf(r3==27,1,0));
rsum1+=IIf(r4==32,-1,IIf(r4==27,1,0));
rsum1+=IIf(r6==32,-1,IIf(r6==27,1,0));
//rsum1+=IIf(r5!=29,-1,IIf(r5==29,1,0));
rsum1+=IIf(r7==32,-1,IIf(r7==27,1,0));
rsum1+=IIf(r8==32,-1,IIf(r8==27,1,0));

return rsum1;
}

ToolTip="r1:"+r1+"r2:"+r2+"r3:"+r3+"r4:"+r4
            +"r5:"+r5+"r6:"+r6+"r7:"+r7+"r8:"+r8+"srsum: "+frsum();

Plot(Sum(frsum(),2),"sum:",colorGreen,styleNoDraw|styleNoLine);
BuyCond =Sum(frsum(),3)>3 OR frsum()>3;
ShortCond=Sum(frsum(),3)<-3 OR  frsum()<-3;


TimeFrameSet(in15Minute);
BuyCond2=Sum(frsum(),3)>3 OR frsum()>3;
ShortCond2=Sum(frsum(),3)<-3 OR  frsum()<-3;
TimeFrameRestore();

/*
Plot(BuyCond,"buy",colorGreen);
Plot(ShortCond ,"sell",colorRed);
*/

z = Zig(Close, 2);

Buy=(BuyCond  AND TimeFrameExpand(BuyCond2,in15Minute)) ;//AND (TimeNum() >= FirstTradeTime AND TimeNum() <= LastTradeTime );
Sell =  IIf(z < Ref(z, -1), 1, 0);// OR TimeNum() > ExitAllPositionsTime;
Short=(ShortCond AND TimeFrameExpand(ShortCond2,in15Minute));// AND (TimeNum() >= FirstTradeTime AND TimeNum() <= LastTradeTime );
Cover = IIf(z > Ref(z, -1), 1, 0) ;//OR TimeNum() > ExitAllPositionsTime;

Buy=ExRem(Buy,Sell);
Sell=ExRem(Sell,Buy);
Short=ExRem(Short,Cover);
Cover=ExRem(Cover,Short);

Filter=BuyCond OR ShortCond ;


Color = IIf(BuyCond , colorGreen,IIf(ShortCond ,colorRed,colorDefault));// ---------CNB-------
AddColumn(Close,"BUY / SELL ", 1.2 , 1, Color , 80);
AddColumn(Sum(frsum(),3),"sum",1,Color ,80);
AddColumn(frsum(),"fsum()",1,Color ,80);

2 comments

1. Aviator1123

about 11 years ago

can u please detail how to use this ?

Report as Spam

2. mauro24

about 11 years ago

Hello,
Does any of you know where to find AFL code or perhaps can write code for indicator :
Percent away from 200 day moving average?

Stock Portfolio Organizer

WiseTrader Toolbox

multi indicator alignment rank for Amibroker (AFL)
prasad519
about 11 years ago
Amibroker (AFL)

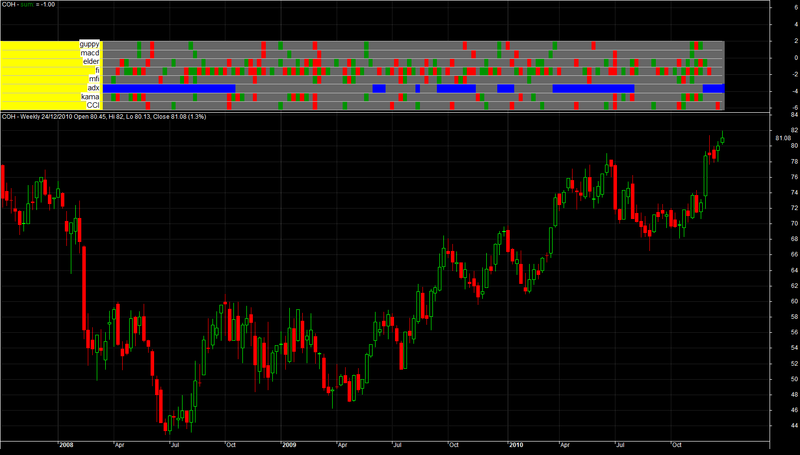

Screenshots
