Andrews Pitchfork for Amibroker (AFL)

Rating:
4 / 5 (Votes 6)
Tags:
amibroker

Dear Friends,

Andrews Pitchfork.afl is innovated by some one else, but there was an Error,

So I had now removed the same Error.

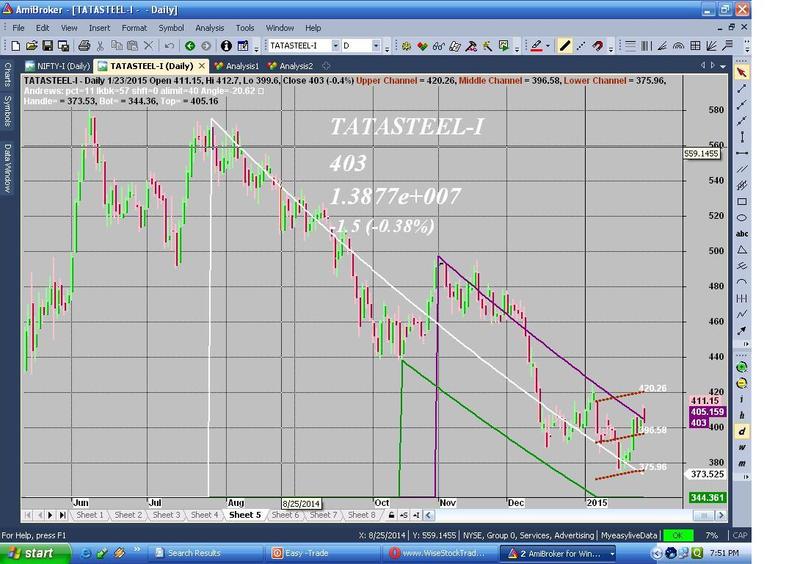

Screenshots

Indicator / Formula

Copy & Paste Friendly
// Andrews Pitchfork V3.3
//
// Use Peak() & Trough() to get peaks & troughs.
// This version deals with adjacent peaks and adjacent
// troughs, i.e. two peaks without an intervening trough or vice-versa.
// It goes backwards from the selected bar until it has a set of
// peak,trough,peak or trough,peak,trough points to use for calulating
// the pitchfork.  When 2 or more peaks or 2 or more troughs are adjacent
// it only uses the last one, i.e. the rightmost one, of the series.
//
// This version only uses the zigzag peak troughs after they have been
// revealed by the subsequent price action.  i.e. the price has to have
// moved off the high/low by the zigzag pct before the peak or trough will
// be used.
//
// This version plots the trendlines as exponential curves that plot as
// straight lines on an semilog chart.
//


SetChartBkColor(ParamColor("bkcolor",colorLightGrey));

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

si = Param( "Zoom/In Out", 5, -30, 30, 1 );
GraphXSpace = si;

////////////////////////////////////////////////////////REGRESION LINEAL /////////////////////////////////////////////////////////////////////

LookBack = Param( "Lookback (RegressionChannel)", 17, 2, 300 );

NH = LastValue( HHVBars( High, LookBack ) ); // lookback period - can be set by the user if necessary
NL = LastValue( LLVBars( Low , LookBack ) ); // lookback period - can be set by the user if necessary

N = 0;

if ( NL > NH )
{
      N = NL;
}
else
{
      N = NH;
}

Start = 1;

X = Cum( Start ); // Set up the x cordinate array of the Linear Regression Line
Y = Close; // Set the y co-ordinate of the Linear Regression line

/* Calculate the slope (bconst) and the y intercept (aconst) of the line */

SUMX    = LastValue( Sum( X, N ) );
SUMY    = LastValue( Sum( Y, N ) );
SUMXY   = LastValue( Sum( X * Y, N ) );
SUMXSqd = LastValue( Sum( X * X, N ) );
SUMSqdX = LastValue( SUMX * SUMX );

bconst = ( N * SUMXY - SUMX * SUMY ) / ( N * SUMXSqd - SUMSqdX );
aconst = ( SUMY - bconst * ( SUMX ) ) / N;

/* Force the x value to be very negative so the graph does not apear before the
lookback period */

Domain = IIf ( X > LastValue( X ) - N, 1 , -1e10 );
Xvar = X * Domain;

/* Linear Regression Line */

Yvar = aconst + bconst * Xvar;

Plot( Yvar + LastValue( HHV( High - Yvar, N ) ), "Upper Channel", colorBrown, styleDots | styleNoLabel );
Plot( Yvar, "Middle Channel", colorBrown, styleDots | styleNoLabel );
Plot( Yvar - LastValue( HHV( Yvar - Low , N ) ), "Lower Channel", colorBrown, styleDots | styleNoLabel );

numbars = SelectedValue( Cum( Status( "barvisible" ) ) );
fraction = IIf( StrRight( Name(), 3 ) == "", 3.2, 3.2 );

hts = Param ( "Text Shift", -50, -100, 100, 10 );

PlotText( "" + WriteVal( Yvar + LastValue( HHV( High - Yvar, N ) ), fraction ),
          SelectedValue( BarIndex() + 13 ) - 13, SelectedValue( Yvar + LastValue( HHV( High - Yvar, N ) ) ), 2 );

PlotText( "" + WriteVal( Yvar, fraction ),
          SelectedValue( BarIndex() + 13 ) - 13, SelectedValue( Yvar ), 2 );

PlotText( "" + WriteVal( Yvar - LastValue( HHV( Yvar - Low , N ) ), fraction ),
          SelectedValue( BarIndex() + 13 ) - 13, SelectedValue( Yvar - LastValue( HHV( Yvar - Low , N ) ) ), 2 );

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

SetBarsRequired( 999999,999999);

echng=0;
bi=BarIndex();
sbi=SelectedValue(bi);

// Pct threshhold for peak() & trough()

Zigpct=Param("Zigpct",4.6,1.0,30.0,0.1,0);

// Since the Zig function only works on a single array, to get a true
// High/Low peak/trough have to approximate it by an EMA choosing the
// High/Low based on the direction the EMA is moving.  Very occasionally
// it misses the correct High/Low.  To just use value, for example the close,
// just change zpr=IIf(ROC(zema,1) > 0,H,L); to zpr=C;
zema=EMA(C,14);
zpr=IIf(ROC(zema,1) > 0,H,L);
zag=Zig(zpr,zigpct);
tr=Ref(zag,-1) > zag AND zag < Ref(zag,1);
pk=Ref(zag,-1) < zag AND zag > Ref(zag,1);
pkprice=ValueWhen(pk,zpr);
trprice=ValueWhen(tr,zpr);

// This bit is still valid at the right edge.  If price moves far enough in 1 Day to show
// a peak or trough on the last bar, the peak or trough won't go away later. The pk_id OR
// tr_id (below) will appear on the same bar.  Normally peaks & troughs appear in 'the past',
// e.g. the high 10 days ago wasn't a peak yesterday but today it is because the price dropped
// enough to make it a peak.
pklast=IIf(BarsSince(pk) < BarsSince(tr),1,0);
trlast=IIf(BarsSince(tr) < BarsSince(pk),1,0);

// A peak or trough is defined as the price moving X pct down or up from a high OR Low.
// The identification point is when the price has actually moved that far.  The Peak/Trough
// will appear 'in the past' on the same day as the pk_id or tr_id appears on the rightmost
// bar.
// Use 'OR tr/OR pk' because when the bar that reveals the pk/tr is also a pk/tr the pklast/
// trlast will have flipped.
// Can't use cross of H or L in the 2nd AND because the H or L may not get above OR below the
// trigger price when the pk/tr occurs.
// The NOT conditions eliminate same-day pk/tr pk_id/tr_id cases. i.e. when the Day's price
// range was >= zpct on the pk/tr day.
pk_id=((pklast OR tr) AND pkprice*(1-(zigpct*0.01)) > L ) AND NOT ( pk AND (H - L)/L >= 0.01 * zigpct);
tr_id=((trlast OR pk) AND H > trprice*(1+(zigpct*0.01)) ) AND NOT ( tr AND (H - L)/L >= 0.01 * zigpct);

// The pk_id/tr_id conditions can recur before the next pk or tr
pk_id=ExRem(pk_id,tr_id);
tr_id=ExRem(tr_id,pk_id);

pk_idlast=IIf(BarsSince(pk_id) < BarsSince(tr_id),1,0);
tr_idlast=IIf(BarsSince(tr_id) < BarsSince(pk_id),1,0);

Lookbk=IIf(pk_idlast,BarsSince(pk),BarsSince(tr));

// How many bars to extend the pitchfork past the selected bar.
xtsn=Param("Extension",62,1,2500,1);

// Shift to move pitchfork up/down from original position one penny at time.
shift=Param("Shift",0,-2000,2000,0.01);

// Filter out cases when the angle of the median lines is too extreme,
// The loop will continue until it finds a pitchfork whose slope falls
// between +- the Angle Limit.  Setting the angle limit to 90 effectively
// turns it off.
alimit=Param("Angle Limit",40,1,180,1);

// bkgrndcolor should match your background color.  It's used to mask the
// parts of the pitchfork arrays outside the calculated pitchfork from view.
bkgrndcolor=ParamColor("Background Color",colorWhite);
pitchforkcolor=ParamColor("Pitchfork Color",colorWhite);

// The peak/trough lines will be used to determine the y coordinates
// of the pitchfork's 3 determining points.

//pline1=Peak(H,Zigpct,1);
//tline1=Trough(L,Zigpct,1);
pline1=pkprice;
tline1=trprice;
// Identify the pivots.

pzag1=pline1 != Ref(pline1,-1);
tzag1=tline1 != Ref(tline1,-1);

// Get the x,y coordinates of the pivots skipping adjacent
// peaks and troughs.  Go backwards from the current bar minus the lookback.

// These will hold the x,y coordinates of the pivot points in arrays at the
// sbi index.

zagx1=0;
zagx2=0;
zagx3=0;
zagy1=0;
zagy2=0;
zagy3=0;

for ( i = sbi - Lookbk[sbi], zagfnd = 0, pzagfnd = 0, tzagfnd = 0 ; i >= 0 && zagfnd < 3; i-- ) {
    if ( pzag1[i] || tzag1[i] ) {
        if ( pzag1[i] && NOT pzagfnd ) {
             zagfnd=zagfnd+1;
             pzagfnd=1;
             tzagfnd=0;
             if ( zagfnd == 1 ) {
                 zagx1[sbi]=i;
                 zagy1[sbi]=pline1[i];
             } else if (zagfnd == 2) {
                 zagx2[sbi]=i;
                 zagy2[sbi]=pline1[i];
             } else if (zagfnd == 3) {
                 zagx3[sbi]=i;
                 zagy3[sbi]=pline1[i];
             }
        } else if ( tzag1[i] && NOT tzagfnd ) {
             zagfnd=zagfnd+1;
             tzagfnd=1;
             pzagfnd=0;
             if ( zagfnd == 1 ) {
                 zagx1[sbi]=i;
                 zagy1[sbi]=tline1[i];
             } else if (zagfnd == 2) {
                 zagx2[sbi]=i;
                 zagy2[sbi]=tline1[i];
             } else if (zagfnd == 3) {
                 zagx3[sbi]=i;
                 zagy3[sbi]=tline1[i];
             }
        }
    }

    if ( zagfnd == 3 ) {  // Got 3 candidate peak/trough points

        echng=0;
        midx=0;
        midy=0;
        Handle=0;
        Top=0;
        Bot=0;

        // Determine Midpoint between the rightmost 2 pivots and the slope from the
        // leftmost pivot to the midpoint.

        Midx[sbi]=zagx2[sbi] + (zagx1[sbi]-zagx2[sbi]) / 2;
        Midy[sbi]=exp( log(zagy1[sbi]) - ( log(zagy1[sbi])-log(zagy2[sbi]) ) /2);
        echng=(log(midy[sbi])-log(zagy3[sbi]))/(midx[sbi]-zagx3[sbi]);

        // Apply the Angle Limit filter

        angle_rad = atan(echng);//radians
        angle_deg = 100 * angle_rad * 180/3.1416;//degrees

        if ( angle_deg < -alimit || angle_deg > alimit ) { // Too steep, reset the search
                                                           // to begin from the 2nd pivot found
            if ( tzagfnd == 1 ) {  // was tr,pk,tr so switch to pk,tr,pk
                tzagfnd = 0;
                pzagfnd = 1;
                zagfnd = 1;
                zagx1[sbi]=zagx2[sbi];
                zagy1[sbi]=zagy2[sbi];
                i = zagx1[sbi];
                zagx2=0;
                zagx3=0;
                zagy2=0;
                zagy3=0;
            } else {  // was pk,tr,pk so switch to tr,pk,tr
                tzagfnd = 1;
                pzagfnd = 0;
                zagfnd = 1;
                zagx1[sbi]=zagx2[sbi];
                zagy1[sbi]=zagy2[sbi];
                i = zagx1[sbi];
                zagx2=0;
                zagx3=0;
                zagy2=0;
                zagy3=0;
            }
       }
    }
}

// Calculate the Pitchfork itself

// Handle first

for ( j=zagx3[sbi],n=0 ; j < Min(sbi+xtsn,BarCount) ; j++,n++ ) {
   Handle[j]=exp(log(zagy3[sbi]) + n*echng) + shift;
}

// High & low median lines.
if ( (exp(log(zagy2[sbi]) + (sbi-zagx2[sbi])*echng))
     > (exp(log(zagy1[sbi]) + (sbi-zagx1[sbi])*echng)) ) {  // Which one is top?
   for ( j=zagx2[sbi],n=0 ; j < Min(sbi+xtsn,BarCount) ; j++,n++ ) {
      top[j]=exp(log(zagy2[sbi]) + n*echng) + shift;
   }
   for ( j=zagx1[sbi],n=0 ; j < Min(sbi+xtsn,BarCount) ; j++,n++ ) {
      bot[j]=exp(log(zagy1[sbi]) + n*echng) + shift;
   }
} else {
   for ( j=zagx2[sbi],n=0 ; j < Min(sbi+xtsn,BarCount) ; j++,n++ ) {
      bot[j]=exp(log(zagy2[sbi]) + n*echng) + shift;
   }
   for ( j=zagx1[sbi],n=0 ; j < Min(sbi+xtsn,BarCount) ; j++,n++ ) {
      top[j]=exp(log(zagy1[sbi]) + n*echng) + shift;
   }
}

Hcolor=IIf(Handle==0,bkgrndcolor,IIf(Ref(handle,-1)== 0 AND handle != 0, bkgrndcolor,pitchforkcolor));
Tcolor=IIf(Top==0,bkgrndcolor,IIf(Ref(top,-1)== 0 AND top != 0, bkgrndcolor,pitchforkcolor));
Bcolor=IIf(Bot==0,bkgrndcolor,IIf(Ref(bot,-1)== 0 AND bot != 0, bkgrndcolor,pitchforkcolor));

Htitle=EncodeColor(pitchforkcolor)
      + StrFormat("\nAndrews: pct=%g lkbk=%g shft=%g alimit=%g Angle=%3.2f
Handle=",Zigpct, Lookbk, shift, alimit, 100 * atan(echng) * 180/3.1416);

Plot(Handle,Htitle,Hcolor,styleLine+styleThick+styleNoRescale);
Plot(Bot,EncodeColor(pitchforkcolor)+"Bot=",colorGreen,styleLine+styleThick+styleNoRescale);
Plot(Top,EncodeColor(pitchforkcolor)+"Top=",colorViolet,styleLine+styleThick+styleNoRescale);

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

_SECTION_BEGIN("In Daily Price");
SetChartOptions(0,chartShowArrows|chartShowDates);
_N(Title = StrFormat("{{NAME}} - {{INTERVAL}} {{DATE}} Open %g, Hi %g, Lo %g, Close %g (%.1f%%) {{VALUES}}",
           O, H, L, C, SelectedValue( ROC( C, 1 ) ) ));

TimeFrameSet(inDaily);
MA3 = MA(C,3);
Cl = C;
TimeFrameRestore();
MA3=(TimeFrameExpand( MA3, inDaily));
Cl=(TimeFrameExpand( Cl, inDaily));
barcolor =IIf(C > O , colorPaleGreen,IIf(C < O,colorPink, colorBlack ) );

PlotOHLC( IIf(Open<Close, Open, Close),High,Low,
           IIf(Open<Close, Close, Open), "Close", barColor, styleBar+styleThick+styleNoTitle );

_SECTION_END();

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

_SECTION_BEGIN("Price, Hawamer");

SetBarsRequired(sbrAll);
daynum= Now(9);//day of the week
SatSun= IIf((daynum==1 OR daynum==7),1,0);
dec= IIf(StrRight(Name(),3) == "", 3.2, 3.2);
dec= (Param("Decimals",2,0,7,1)/10)+1;
uc= ParamColor("Up Candle Fill Color",19);
dc= ParamColor("Dn Candle Fill Color",24);
nc= ParamColor("Neutral Fill Color",16);
bc= BarCount-1;
x= BarIndex();
Lx= LastValue(x);
sx= SelectedValue(x);
//==============================
SetBarFillColor(IIf(C>O,43,IIf(C<O,32,nc)));
Plot(C,"",IIf(C>O,27,IIf(C<O,38,16)),64);

_SECTION_END();

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

_SECTION_BEGIN( "Magnified Market Price" );
//by Vidyasagar, vkunisetty@yahoo.com//
FS = Param( "Font Size", 25, 11, 100, 1 );
GfxSelectFont( "Times New Roman", FS, 700, True );
GfxSetBkMode( colorWhite );
GfxSetTextColor( ParamColor( "Color", colorWhite ) );
Hor = Param( "Horizontal Position", 420, 1, 1200, 1 );
Ver = Param( "Vertical Position", 100, 1, 830, 1 );
GfxTextOut( "" + C, Hor , Ver );
GfxTextOut( Name(), Hor, Ver-50 );

GfxSetTextColor( ParamColor( "ColorY", colorWhite ) );
GfxTextOut( "" + V, Hor , Ver + 45 );

YC = TimeFrameGetPrice( "C", inDaily, -1 );
DD = Prec( C - YC, 2 );
xx = Prec( ( DD / YC ) * 100, 2 );
GfxSelectFont( "Times New Roman", 20, 700, True );
GfxSetBkMode( colorWhite );
GfxSetTextColor( ParamColor( "Color", colorRed ) );
GfxTextOut( "" + DD + " (" + xx + "%)", Hor , Ver + 90 );

_SECTION_END();

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

3 comments

1. davidalan

nice, thanks

2. hotaro3

thank you for your work to improve the formula, 5 star for you

3. rajenvyas

Thanks Nalinbhai.

Leave Comment

Please login here to leave a comment.

Back
