Multiple Trend for Amibroker (AFL)
ecredic over 13 years ago Amibroker (AFL)
I got this code from Bulli Castelo’s forum, but it was a mess!
I don’t know the author, but he could not implement what he/she wanted.
I think the Idea is good so I tried to fix the code and I think I got it working as intended.
The code shows the cross of a EMA and a AMA on various timeframes indicating gold cross (green),
dead cross (red) and change of direction (yellow) on one of them.
You have to use 5 min or less on the chart for it to display the crosses on 5, 15, 60 and daily.
It guives buy and sell signals acording to the sync of the timeframes.
Enjoy,
Eduardo

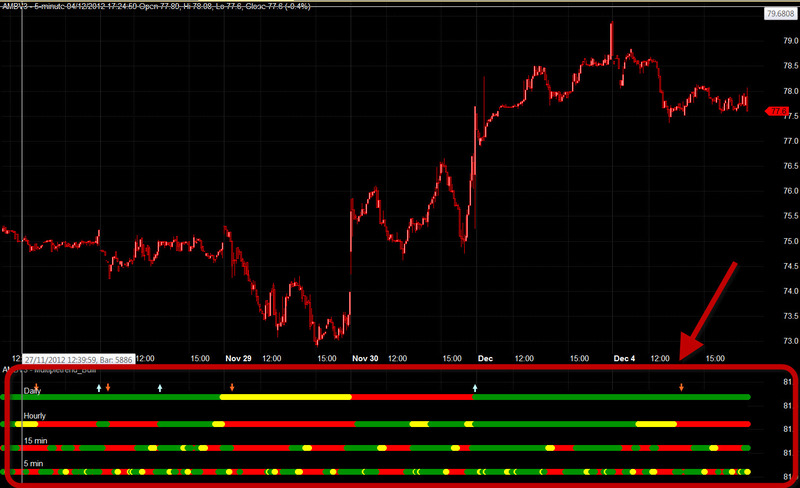

Screenshots
Indicator / Formula
Copy & Paste Friendly
_SECTION_BEGIN("Multiple Trend");
// Define label bar (x) position location
#pragma nocache
blankRightBars = 0; //insert actual blank right bars specified in Preferences
barsInView = Status("lastvisiblebarindex") - Status("firstvisiblebarindex") - blankRightBars;
Offset = Param("Offset Bar", 0.95, 0, 1, 0.01);
textOffset = BarCount - (Offset * barsInView);
TimeFrameSet( in5Minute) ;
HaClose5 = EMA((O+H+L+C)/4,3);
HaOpen5 = AMA( Ref( HaClose5, -1 ), 0.5 );
X5 = HaClose5 < Ref( HaClose5,-1) OR AlmostEqual( Haopen5 , Ref(Haopen5,-1) );
Color5m = IIf( HaOpen5 > HaClose5, colorRed, IIf( X5,colorYellow, colorGreen));
event1 = Haopen5 >= Haclose5;
event2 = Haopen5 < Haclose5;
TimeFrameRestore();
TimeFrameSet( in15Minute) ;
HaClose15 =EMA((O+H+L+C)/4,3);
HaOpen15 = AMA( Ref( HaClose15, -1 ), 0.5 );
X15 = HaClose15 < Ref( HaClose15,-1) OR AlmostEqual( HaOpen15,Ref(HaOpen15,-1));
Color15m = IIf( Haopen15 > Haclose15, colorRed, IIf( X15,colorYellow, colorGreen));
event3= Haopen15 >= Haclose15;
event4= Haopen15 < Haclose15;
TimeFrameRestore();
TimeFrameSet( inHourly) ;
HaCloseH =EMA((O+H+L+C)/4,3);
HaOpenH = AMA( Ref( HaCloseH, -1 ), 0.5 );
XH = HaCloseH < Ref( HaCloseH,-1) OR AlmostEqual( HaopenH,Ref(HaopenH,-1));
ColorHr = IIf( HaopenH > HacloseH, colorRed, IIf( XH,colorYellow, colorGreen));
event5 = HaopenH >= HacloseH;
event6 = HaopenH < HacloseH;
TimeFrameRestore();
TimeFrameSet(inDaily) ;
HaCloseD = EMA((O+H+L+C)/4,3);
HaOpenD = AMA( Ref( HaCloseD, -1 ), 0.5 );
XD = HaCloseD <= Ref( HaCloseD,-1) OR AlmostEqual( HaopenD, Ref(HaopenD,-1));
Color20D = IIf( HaOpenD > HacloseD, colorRed, IIf( XD , colorYellow, colorGreen));
event7 = HaopenD >= HacloseD;
event8 = HaopenD < HacloseD;
TimeFrameRestore();
PlotShapes( IIf(TimeFrameExpand( event1 , in5Minute ), shapeCircle,shapeNone) ,TimeFrameExpand( Color5m , in5Minute ), 0,81.10);
PlotShapes( IIf(TimeFrameExpand( event2 , in5Minute ), shapeCircle,shapeNone) , TimeFrameExpand( Color5m , in5Minute ), 0,81.10);
PlotShapes( IIf(TimeFrameExpand( event3 , in15Minute ), shapeCircle,shapeNone) ,TimeFrameExpand( Color15m , in15Minute ), 0,81.30);
PlotShapes( IIf(TimeFrameExpand( event4 , in15Minute ), shapeCircle,shapeNone) ,TimeFrameExpand( Color15m , in15Minute ), 0,81.30);
PlotShapes( IIf(TimeFrameExpand( event5 , inHourly ), shapeCircle,shapeNone) ,TimeFrameExpand( ColorHr , inHourly ), 0,81.50);
PlotShapes( IIf(TimeFrameExpand( event6 , inHourly ), shapeCircle,shapeNone) ,TimeFrameExpand( ColorHr , inHourly ), 0,81.50);
PlotShapes( IIf(TimeFrameExpand( event7 , inDaily ), shapeCircle,shapeNone) ,TimeFrameExpand( Color20D , inDaily ), 0,81.73);
PlotShapes( IIf(TimeFrameExpand( event8 , inDaily ), shapeCircle,shapeNone) , TimeFrameExpand( Color20D , inDaily ), 0,81.73);
Plot( 21,"",colorBlack,styleOwnScale|styleArea|styleNoLabel,0, 100 );
PlotText("5 min", textoffset, 81.09, colorWhite);
Plot( 41,"",colorBlack,styleOwnScale|styleArea|styleNoLabel,0, 100 );
PlotText("15 min", textoffset, 81.28, colorWhite);
Plot( 61,"",colorBlack,styleOwnScale|styleArea|styleNoLabel,0, 100 );
PlotText("Hourly", textoffset, 81.49, colorWhite);
Plot( 81,"",colorBlack,styleOwnScale|styleArea|styleNoLabel,0, 100 );
PlotText("Daily", textoffset, 81.70, colorWhite);
Sell = TimeFrameExpand( event1 , in5Minute ) AND TimeFrameExpand( event3 , in15Minute ) AND TimeFrameExpand( event5 , inHourly )/* AND TimeFrameExpand( event7 , inDaily )*/ ;
Buy = TimeFrameExpand( event2 , in5Minute ) AND TimeFrameExpand( event4 , in15Minute ) AND TimeFrameExpand( event6 , inHourly ) AND TimeFrameExpand( event8 , inDaily ) ;
Buy=ExRem (Buy,Sell);
Sell=ExRem(Sell,Buy);
PlotShapes( IIf(Buy, shapeUpArrow,shapeNone) , colorSkyblue, 0,81.8);
PlotShapes( IIf(Sell, shapeDownArrow,shapeNone) , colorOrange, 0,81.8,10);
GraphXSpace = 10;
_SECTION_END();2 comments
Leave Comment
Please login here to leave a comment.
good work
good work done. can you help me to get a 4 hourly time frame in this. this would be highly appreciated . thanx
