amibroker, support, resistance

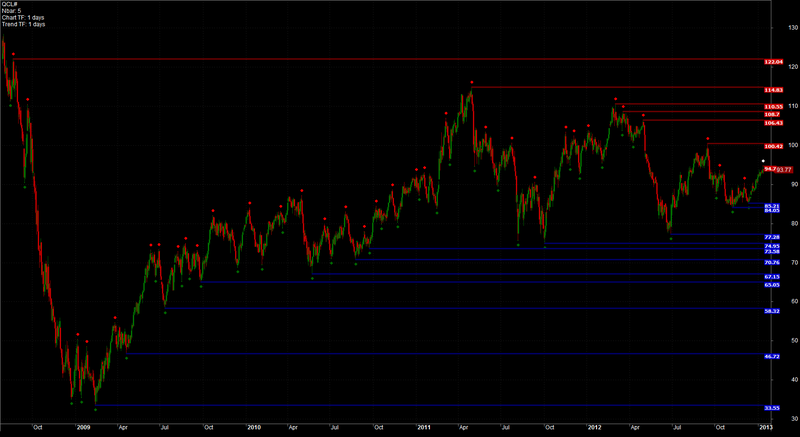

code written while answering a question on Amibroker Yahoo board. Posted here mainly to exchange AFL coding skills and not sure if it will make you any money. Code has 2 modes of displaying S/R levels based on fractal pivots. Further multiple time frames can be used, meaning when you display 1 hour data you can set the time frame in the parameter window to e.g. 120 min so the pivots are calculated using the 2 hour time frame. Play with the parameter window a bit to see what it does.

Submitted by vishalsbharati about 13 years ago

Submitted by icemanc almost 14 years ago

Submitted by shyam242 almost 14 years ago

Submitted by yancedolly about 14 years ago

Submitted by kaiji over 15 years ago

Submitted by dkeleher about 14 years ago

Copy & Paste Friendly

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

// AFL code by Edward Pottasch, Jan 2013
// Oz weekly pivots: http://i1145.photobucket.com/albums/o515/Austtrade/SupRes_zpsbebc3ab9.png
// Added toggle to log scale for Y-axis

RequestTimedRefresh(0.1,True);
xx=BarIndex();x=xx;Lx=LastValue(x);
nbar=Param("N Pivot Bars",5,2,50,1);
tf=Param("Time Frame (min)",inWeekly/60,1,inWeekly/60,1);tfrm=in1Minute*tf;
CleanPivots=ParamToggle("Use Clean Pivots","Off|On",1);
PivotSymmetry=ParamToggle("Use Symmetric Pivots","Off|On",0);
displayMode=ParamToggle("Display Mode","Classic|Alternative",1);
logscale=ParamToggle("Axis type","Linear|Logarithmic",0);

SetChartOptions(0,chartShowDates);
if(logscale) SetChartOptions(2,chartLogarithmic,chartGridMiddle|chartGridMargins);
else SetChartOptions(3,chartLogarithmic,!(chartGridMiddle|chartGridMargins));

procedure alternate1_proc(pk,tr,px0,px1,px2,ph0,ph1,ph2,tx0,tx1,tx2,tl0,tl1,tl2)
{
    global pkh;
    global trh;

    pk=IIf((px0==px1 AND px2>tx1 AND ph1<ph2)
    OR (tx0==tx1 AND px1<px0 AND px1>tx0 AND ph1<=ph0)
    OR (px0>px1 AND px1<tx0 AND px2>tx1 AND ph1<ph2)
    OR (px0>px1 AND px0<tx0 AND px1>tx1 AND ph1<ph0)
    OR (ph1==ph2 AND px2>tx1)
    OR (px1==tx1 AND px2>tx2),False,pk);

    tr=IIf((tx0==tx1 AND tx2>px1 AND tl1>tl2)
    OR (px0==px1 AND tx1<tx0 AND tx1>px0 AND tl1>=tl0)
    OR (tx0>tx1 AND tx1<px0 AND tx2>px1 AND tl1>tl2)
    OR (tx0>tx1 AND tx0<px0 AND tx1>px1 AND tl1>tl0)
    OR (tl1==tl2 AND tx2>px1)
    OR (px1==tx1 AND tx2>px2),False,tr);

    pkh=pk;trh=tr;
}

TimeFrameSet(tfrm);
if(PivotSymmetry)
{
    fc=1;
    pk=H>Ref(HHV(H,nbar*fc),-1) AND Ref(HHV(H,nbar),nbar)<=H;
    tr=L<Ref(LLV(L,nbar*fc),-1) AND Ref(LLV(L,nbar),nbar)>=L;
}
else
{
    fc=2;
    pk=H>Ref(HHV(H,nbar*fc),-1) AND Ref(HHV(H,nbar),nbar)<=H;
    tr=L<Ref(LLV(L,nbar*fc),-1) AND Ref(LLV(L,nbar),nbar)>=L;
}

px0=ValueWhen(pk,x,0); tx0=ValueWhen(tr,x,0);
px1=ValueWhen(pk,x,1); tx1=ValueWhen(tr,x,1);
px2=ValueWhen(pk,x,2); tx2=ValueWhen(tr,x,2);
px3=ValueWhen(pk,x,3); tx3=ValueWhen(tr,x,3);
ph0=ValueWhen(pk,H,0); tl0=ValueWhen(tr,L,0);
ph1=ValueWhen(pk,H,1); tl1=ValueWhen(tr,L,1);
ph2=ValueWhen(pk,H,2); tl2=ValueWhen(tr,L,2);
ph3=ValueWhen(pk,H,3); tl3=ValueWhen(tr,L,3);

if(CleanPivots)
{
    alternate1_proc(pk,tr,px0,px1,px2,ph0,ph1,ph2,tx0,tx1,tx2,tl0,tl1,tl2);
    pk=pkh;tr=trh;

    px0=ValueWhen(pk,x,0); tx0=ValueWhen(tr,x,0);
    px1=ValueWhen(pk,x,1); tx1=ValueWhen(tr,x,1);
    px2=ValueWhen(pk,x,2); tx2=ValueWhen(tr,x,2);
    px3=ValueWhen(pk,x,3); tx3=ValueWhen(tr,x,3);
    ph0=ValueWhen(pk,H,0); tl0=ValueWhen(tr,L,0);
    ph1=ValueWhen(pk,H,1); tl1=ValueWhen(tr,L,1);
    ph2=ValueWhen(pk,H,2); tl2=ValueWhen(tr,L,2);
    ph3=ValueWhen(pk,H,3); tl3=ValueWhen(tr,L,3);

    alternate1_proc(pk,tr,px0,px1,px2,ph0,ph1,ph2,tx0,tx1,tx2,tl0,tl1,tl2);
    pk=pkh;tr=trh;

    px0=ValueWhen(pk,x,0); tx0=ValueWhen(tr,x,0);
    px1=ValueWhen(pk,x,1); tx1=ValueWhen(tr,x,1);
    px2=ValueWhen(pk,x,2); tx2=ValueWhen(tr,x,2);
    px3=ValueWhen(pk,x,3); tx3=ValueWhen(tr,x,3);
    ph0=ValueWhen(pk,H,0); tl0=ValueWhen(tr,L,0);
    ph1=ValueWhen(pk,H,1); tl1=ValueWhen(tr,L,1);
    ph2=ValueWhen(pk,H,2); tl2=ValueWhen(tr,L,2);
    ph3=ValueWhen(pk,H,3); tl3=ValueWhen(tr,L,3);
}
pkh=IIf(pk,H,Null);
trl=IIf(tr,L,Null);
TimeFrameRestore();
fact=Nz(Max(tfrm/60,Interval()/60)/(Interval()/60));
if(fact==0)fact=1;
Lkbk=Nz(tfrm/Interval());
if(Lkbk>1)
{
    pk=TimeFrameExpand(pk,tfrm,expandFirst);
    pkh=TimeFrameExpand(pkh,tfrm,expandFirst);
    pkhs=IIf(!IsEmpty(pkh),1,0);pkhs=pkhs-Ref(pkhs,-1);
    pk=pk AND H==pkh;
    cond1=Sum(pk,BarsSince(pkhs==1)+1)==1 AND pk;
    pk=pk AND cond1;

    tr=TimeFrameExpand(tr,tfrm,expandFirst);
    trl=TimeFrameExpand(trl,tfrm,expandFirst);
    trls=IIf(!IsEmpty(trl),1,0);trls=trls-Ref(trls,-1);
    tr=tr AND L==trl;
    cond1=Sum(tr,BarsSince(trls==1)+1)==1 AND tr;
    tr=tr AND cond1;

    px0=ValueWhen(pk,x,0); tx0=ValueWhen(tr,x,0);
    px1=ValueWhen(pk,x,1); tx1=ValueWhen(tr,x,1);
    px2=ValueWhen(pk,x,2); tx2=ValueWhen(tr,x,2);
    px3=ValueWhen(pk,x,3); tx3=ValueWhen(tr,x,3);
    ph0=ValueWhen(pk,H,0); tl0=ValueWhen(tr,L,0);
    ph1=ValueWhen(pk,H,1); tl1=ValueWhen(tr,L,1);
    ph2=ValueWhen(pk,H,2); tl2=ValueWhen(tr,L,2);
    ph3=ValueWhen(pk,H,3); tl3=ValueWhen(tr,L,3);
}

GraphXSpace=5;SetChartBkColor(ColorRGB(0,0,0));
SetBarFillColor(IIf(C>O,colorGreen,IIf(C<=O,colorRed,colorLightGrey)));
Plot(C,"Price",IIf(C>O,colorDarkGreen,IIf(C<=O,colorDarkRed,colorLightGrey)),64,0,0,0,0);
Plot(pkh,"",colorRed,styleThick,0,0,0,-1);
Plot(trl,"",colorBrightGreen,styleThick,0,0,0,-1);
PlotShapes(shapeSmallCircle*tr,IIf(Lx-ValueWhen(tr,x)>nbar*fact,ColorRGB(0,100,0),colorWhite),0,L,-10);
PlotShapes(shapeSmallCircle*pk,IIf(Lx-ValueWhen(pk,x)>nbar*fact,ColorRGB(255,0,0),colorWhite),0,H,10);

qq=Interval()/60;
if(qq < 60){tf=" min";tt=qq;}
else if(qq >= 60 AND qq < 1440){tf=" hrs";tt=qq/60;}
else if(qq >= 1440){tf=" days";tt=(qq/60)/24;}
qq=Max(tfrm/60,Interval()/60);
if(qq < 60){tfa=" min";tta=qq;}
else if(qq >= 60 AND qq < 1440){tfa=" hrs";tta=qq/60;}
else if(qq >= 1440){tfa=" days";tta=(qq/60)/24;}

Title = Name() +
"\nNbar: " + nbar +
"\nChart TF: " + tt + tf +
"\nTrend TF: " + tta + tfa;

function GetVisibleBarCount()
{
    lvb=Status("lastvisiblebar");
    fvb=Status("firstvisiblebar");
    return Min(lvb-fvb,BarCount-fvb);
}
function GfxConvertBarToPixelX(bar)
{
    lvb=Status("lastvisiblebar");
    fvb=Status("firstvisiblebar");
    pxchartleft=Status("pxchartleft");
    pxchartwidth=Status("pxchartwidth");
    return Nz(pxchartleft+bar*pxchartwidth/(lvb-fvb+1));
}
function GfxConvertValueToPixelY(value,logscale)
{
    local Miny,Maxy,pxchartbottom,pxchartheight;
    Miny=Status("axisminy");
    Maxy=Status("axismaxy");
    pxchartbottom=Status("pxchartbottom");
    pxchartheight=Status("pxchartheight");
    if(logscale) rv=Nz(pxchartbottom-floor(0.5+(log(value)-log(Miny))*pxchartheight/(log(maxy)-log(miny))));
    else rv=Nz(pxchartbottom-floor(0.5+(Value-Miny)*pxchartheight/(Maxy-Miny)));
    return rv;
}
AllVisibleBars=GetVisibleBarCount();
fvb=Status("firstvisiblebar");

for(i=0;i<AllVisibleBars;i++)
{
    DisplayRes=1;
    DisplaySup=1;
    lvix=i+fvb;
    if(pk[lvix])
    {
        if(displayMode)
        {
            hval=H[lvix];
            for(j=i;j<AllVisibleBars;j++)
            {
                lvjx=j+fvb;
                if(H[lvjx]>hval)
                {
                    DisplayRes=0;
                    break;
                }
            }
        }
        if(DisplayRes)
        {
            GfxSelectPen(ColorRGB(100,0,0),3,0);
            GfxMoveTo(GfxConvertBarToPixelX(i),GfxConvertValueToPixelY(H[lvix],logscale));
            GfxLineTo(GfxConvertBarToPixelX(AllVisibleBars-1),GfxConvertValueToPixelY(H[lvix],logscale));
            GfxSelectFont("Tahoma",8,650);GfxSetBkColor(ColorRGB(200,0,0));GfxSetTextColor(colorWhite);
            GfxTextOut(""+H[lvix],GfxConvertBarToPixelX(AllVisibleBars+1),GfxConvertValueToPixelY(H[lvix],logscale));
        }
    }
    if(tr[lvix])
    {
        if(displayMode)
        {
            lval=L[lvix];
            for(j=i;j<AllVisibleBars;j++)
            {
                lvjx=j+fvb;
                if(L[lvjx]<lval)
                {
                    DisplaySup=0;
                    break;
                }
            }
        }
        if(DisplaySup)
        {
            GfxSelectPen(ColorRGB(0,0,100),3,0);
            GfxMoveTo(GfxConvertBarToPixelX(i),GfxConvertValueToPixelY(L[lvix],logscale));
            GfxLineTo(GfxConvertBarToPixelX(AllVisibleBars-1),GfxConvertValueToPixelY(L[lvix],logscale));
            GfxSelectFont("Tahoma",8,650);GfxSetBkColor(ColorRGB(0,0,200));GfxSetTextColor(colorWhite);
            GfxTextOut(""+L[lvix],GfxConvertBarToPixelX(AllVisibleBars+1),GfxConvertValueToPixelY(L[lvix],logscale));
        }
    }
}

1 comments

1. lemefr

almost 12 years ago

Great S/R code! Thank you very much… trying to use it in Daily Time Frame…I think it’s ok…
