ZeroLag MACD for Amibroker (AFL)

Rating:
3 / 5 (Votes 4)
Tags:
oscillator, macd, amibroker, ZeroLag

ZeroLag MACD

MACD shows the difference between a fast and slow exponential moving average (EMA) of closing prices. Since it is based on moving averages, MACD is inherently a lagging indicator.

MACD is a form of Absolute Price Oscillator (APO), meaning that it takes the difference of two price EMAs. An alternate form of price oscillator is the Percentage Price Oscillator (PPO) which is computed by dividing the difference between two moving averages of price by the longer moving average value. The relative values generated by a PPO will differ from an APO (or MACD) in subtle but significant ways, and are preferred when (a) comparing the oscillator values between different securities, especially of widely different prices, or (b) comparing oscillator values for the same security at significantly different times, especially for a security whose value has changed greatly. The APO (and hence the MACD) will show greater oscillator extremes for higher priced securities, unlike the percentage price oscillator. The final member of the price oscillator family is the Detrended price oscillator.

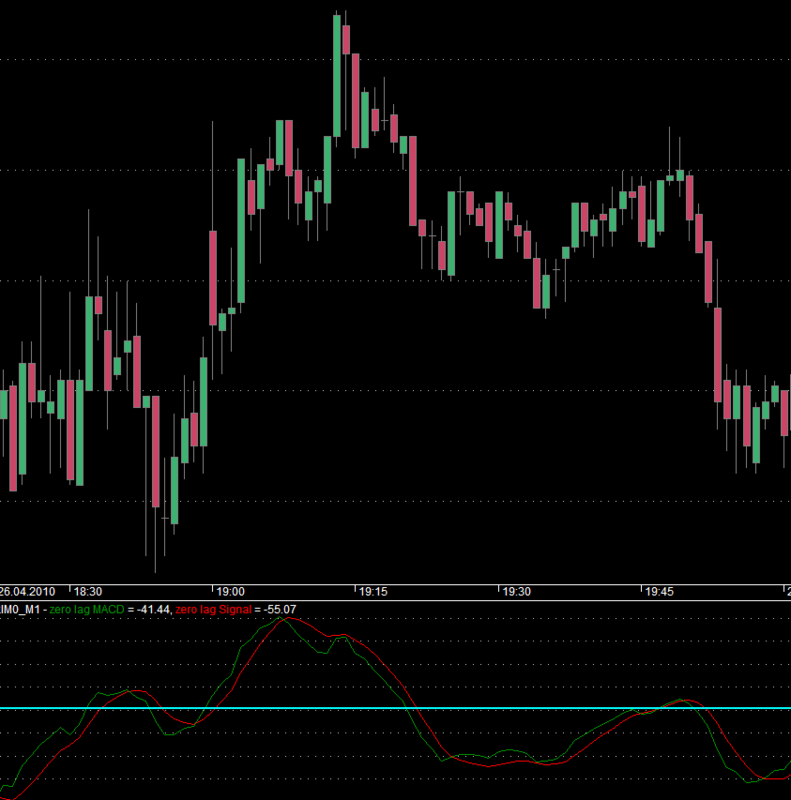

Screenshots

Similar Indicators / Formulas

MACD Candles
Submitted by stanwell over 14 years ago
Coloured MACD
Submitted by sandiip123 about 14 years ago
ZeroLag MACD- ARC
Submitted by siivaramm about 14 years ago
%MACD
Submitted by mavirk over 14 years ago
Reversing MACD
Submitted by kelvinhand over 11 years ago
MACD Dema Indicator
Submitted by Peixoto over 14 years ago

Indicator / Formula

Copy & Paste Friendly
p1 = Param("Short period", 12, 3, 50, 1);
p2 = Param("Long period", 26, 5, 100, 1);
p3 = Param("Signal period", 9, 3, 25, 1);

EMAshort = EMA(C, p1);
EMA2 = EMA( EMAshort, p1);
Diff = EMAshort - EMA2;
ZLEMAshort = EMAshort + Diff;

EMAlong = EMA(C, p2);
EMA2 = EMA(EMAlong, p2);
Diff = EMAlong - EMA2;
ZLEMAlong = EMAlong + Diff;

ZLMACD = ZLEMAshort - ZLEMAlong;

EMA1 = EMA(ZLMACD, p3);
EMA2 = EMA(EMA1, p3);
Diff = EMA1 - EMA2;
ZLSignal = EMA1 + Diff;

Plot(ZLMACD, "zero lag MACD", colorGreen);
Plot(ZLSignal, "zero lag Signal", colorRed);
