Pivot Levels with good stoploss for Amibroker (AFL)

anandnst almost 14 years ago Amibroker (AFL)

  • Rating:
    4 / 5 (Votes 10)
  • Tags:
    trading system, amibroker

i have made a system with amazing stoploss with buy/sell signals added to the system.
Pivot levels and retracements all provided in the system

Try and give ur comments.

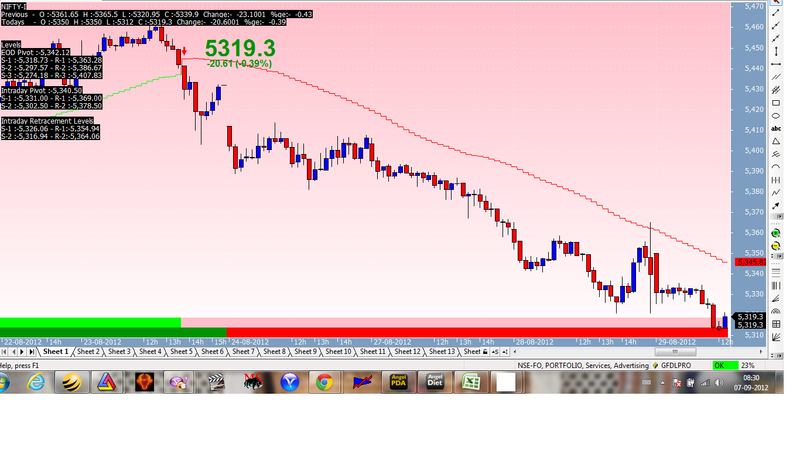

Screenshots

Indicator / Formula

Copy & Paste Friendly
_SECTION_BEGIN("Price");
SetChartOptions(0,chartShowArrows|chartShowDates);
_N(Title = StrFormat("{{NAME}} - {{INTERVAL}} {{DATE}} Open %g, Hi %g, Lo %g, Close %g (%.1f%%) {{VALUES}}", O, H, L, C, SelectedValue( ROC( C, 1 ) ) ));
Plot( C, "Close", ParamColor("Color", colorBlack ), styleNoTitle | ParamStyle("Style") | GetPriceStyle() );
_SECTION_END();
_SECTION_BEGIN("Background Color");
BKswitch = ParamToggle("Background Color","On,Off");

OUTcolor = ParamColor("Outer Panel Color",colorLightBlue);
INUPcolor = ParamColor("Inner Panel Upper",colorPink);
INDNcolor = ParamColor("Inner Panel Lower",colorWhite);
TitleColor = ParamColor("Title Color ",colorBlack);

if (NOT BKswitch)
{
SetChartBkColor(OUTcolor); // color of outer border
SetChartBkGradientFill(INUPcolor,INDNcolor,TitleColor); // color of inner panel
}
_SECTION_END();

_SECTION_BEGIN("LEVELS");
PO=TimeFrameGetPrice( "O", inDaily, -1 );
PL=TimeFrameGetPrice( "L", inDaily, -1 );
PH=TimeFrameGetPrice( "H", inDaily, -1 );
PC=TimeFrameGetPrice( "C", inDaily, -1 );
TO= TimeFrameGetPrice( "O", inDaily, 0 );
TH= TimeFrameGetPrice( "H", inDaily, 0 );
TL= TimeFrameGetPrice( "L", inDaily, 0 );
TC= TimeFrameGetPrice( "C", inDaily, 0 );
PC1= TimeFrameGetPrice( "C", inDaily, -2 );

P=((PH+PL+PC)/3);
R1=((2*P)-PL);
S1=((2*P)-PH);
R2=((P-S1)+R1);
S2=(P-(R1-S1));
R3=PH+(2*(P-PL));
S3=PL-(2*(PH-P));

R=TH-TL;
PP=(TH+TL+TO+TO)/4;
RR1=PP+(R*0.38);
RR2=PP+(R*0.62);
SS1=PP-(R*0.38);
SS2=PP-(R*0.62);

PPP=(TH+TL+TO+TO)/4;
RRR1=((2*PPP)-TL);
SSS1=((2*PPP)-TH);
RRR2=((PPP-SSS1)+RRR1);
SSS2=(PPP-(RRR1-SSS1));

Pchange=PC-PC1;
PPerChange=(Pchange/PC1)*100;
Tchange=TC-PC;
TPerChange=(Tchange/TC)*100;

Title=Name()+
"\nPrevious  -  O :-"+PO+"  H :-"+PH+"  L :-"+PL+"  C :-"+PC+"  Change:-  "+Pchange+"  %ge:-  "+WriteVal(PPerChange,1.2)+
"\nTodays    -  O :-"+TO+"  H :-"+TH+"  L :-"+TL+"  C :-"+TC+"  Change:-  "+Tchange+"  %ge:-  "+WriteVal(TPerChange,1.2)+
"\n"+
"\n"+
"\nLevels"+
"\nEOD Pivot :-"+WriteVal(P,1.2)+
"\nS-1 :-"+WriteVal(S1,1.2)+" - R-1 :-"+WriteVal(R1,1.2)+
"\nS-2 :-"+WriteVal(S2,1.2)+" - R-2 :-"+WriteVal(R2,1.2)+
"\nS-3 :-"+WriteVal(S3,1.2)+" - R-3 :-"+WriteVal(R3,1.2)+
"\n"+
"\nIntraday Pivot :-"+WriteVal(PP,1.2)+
"\nS-1 :-"+WriteVal(SSS1,1.2)+" - R-1 :-"+WriteVal(RRR1,1.2)+
"\nS-2 :-"+WriteVal(SSS2,1.2)+" - R-2 :-"+WriteVal(RRR2,1.2)+
"\n"+
"\nIntraday Retracement Levels"+
"\nS-1 :-"+WriteVal(SS1,1.2)+" - R-1:-"+WriteVal(RR1,1.2)+
"\nS-2 :-"+WriteVal(SS2,1.2)+" - R-2:-"+WriteVal(RR2,1.2);
_SECTION_END();
//------------------------------------------------------------------------------


_SECTION_BEGIN("Moving Average");

x=Param("EMA 1",20,1,200,1);
y=Param("EMA 2", 50,1,200,1);
z=Param("EMA 3",100,1,200,1);
zz=Param("EMA 4",200,1,200,1);
EMA20= EMA(C,x);
EMA50=EMA(C,y);
EMA100= EMA(C,z);
EMA200=EMA(C,zz);

SUT=EMA(C,5)>EMA20;
SDT=EMA20>EMA(C,5);
mut= EMA20>EMA50;
mdt=EMA20<EMA50;
_SECTION_END();
_SECTION_BEGIN("Mid Term Price Trend");


MPT = IIf( mut, colorGreen, IIf( mdt, colorRed, colorYellow));
Plot( 3, "", MPT, styleArea|styleOwnScale|styleNoLabel, 0, 100);

_SECTION_END();

_SECTION_BEGIN("Short Term Price Trend");

SPT = IIf( EMA(C,5)>EMA20, colorBrightGreen, IIf( EMA20>EMA(C,5), colorPink, colorYellow));
Plot( 6, "", SPT, styleArea|styleOwnScale|styleNoLabel, 0, 100);

_SECTION_END();

_SECTION_BEGIN("Magnified Market Price");
FS=Param("Font Size",30,30,100,1);
GfxSelectFont("Arial", FS, 700, italic = False, underline = False, True );
GfxSetBkMode( colorGreen );
GfxSetTextColor( ParamColor("Color",colorGreen) );
Hor=Param("Horizontal Position",350,800,800,800);
Ver=Param("Vertical Position",50,27,27,27);
GfxTextOut(""+C,Hor , Ver );
YC=TimeFrameGetPrice("C",inDaily,-1);
DD=Prec(C-YC,2);
xx=Prec((DD/YC)*100,2);
GfxSelectFont("Arial", 12, 700, italic = False, underline = False, True );
GfxSetBkMode( colorGreen );
GfxSetTextColor(ParamColor("Color",colorGreen) );
GfxTextOut(""+DD+" ("+xx+"%)", Hor+5, Ver+45 );
_SECTION_END();

_SECTION_BEGIN("SAM");
/*Gann HiLo*/
per=Optimize("Per",Param("Per",42,1,55,1),1,55,1);

Hld = IIf(C > Ref(MA(H, per), -1), 1, IIf(C < Ref(MA(L, per), -1), -1, 0));
Hlv = ValueWhen(Hld != 0, Hld, 1);
Hilo = IIf(Hlv == -1, MA(H, per), MA(L, per));
Trigger = IIf(C>Hilo, colorCustom9, colorCustom5);
Plot(C,"",1,128);
Plot(Hilo, _DEFAULT_NAME(), Trigger, styleStaircase);
SetPositionSize( 50, spsShares );
Buy=Cross(C,Hilo);
Sell=Cross(Hilo,C);
PlotShapes(IIf(Buy, shapeUpArrow, shapeNone),colorGreen, 0,L, Offset=-25);
PlotShapes(IIf(Sell, shapeDownArrow, shapeNone),colorRed, 0,H, Offset=-25);
_SECTION_END();

14 comments

almost 14 years ago

Hellow Mr.Anand,

Trend Bands really amazing.

I have put the AFL, but chart is not clear, its compressed.

Any idea how can i get clear normal chart

Thanks
Viswanath

almost 14 years ago

Hi Mr. Kv_Maligi, what do u mean by compressed Afl?? u wish to change the background colour then Visit in Parameter and change the Colour u want.
U can remove the Pivot levels on in black background (Go to Delete indicator – Delete levels ) – Chart would be clear.

almost 14 years ago

Hi,

Its fine now, its a mistake from myside, accidentally i have put trix over it. Now chart is fine.

Thanks
viswanath

5. Divyesh
almost 14 years ago

@anandnst ,
very good S/L…

if i wish to use this in my other positional formula,can i…?

almost 14 years ago

yes divyesh, u can use this stoploss for entry and exit as positional.its really good one. This Afl is having Scanning also.

almost 14 years ago

very nice thanks anand pls suggest timeframe for intra and positional pls

over 13 years ago

I have not tested your system but i think it is not correct . Different moving averages work in different time frames . You cant put one period moving average for all time frames . Suppose i am trading short term seeing daily charts . I will put here mov avg which works perfectly in this time frame .We have to change parameters in every time frame .

over 13 years ago

Kindly test it and then come to the results. i myself is trading on this system daily. i feel its worth in 15 minutes and daily timeframe. Try and would wait for ur comments.

over 13 years ago

Hello Mr.Anand,
It is very good, and can u convert mt4 indicators to afl?, if u can give ur mail id.

12. anandnst
over 13 years ago

Hello Vjaisridharan,

R u using MT4 system??

Email address – anandnst@gmail.com
